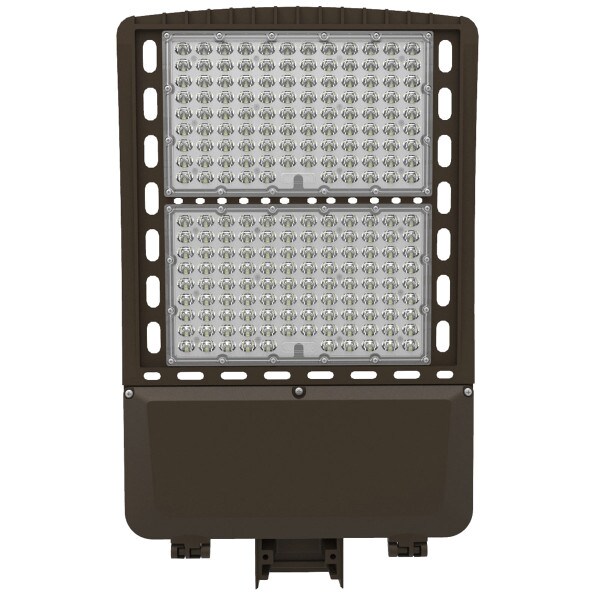

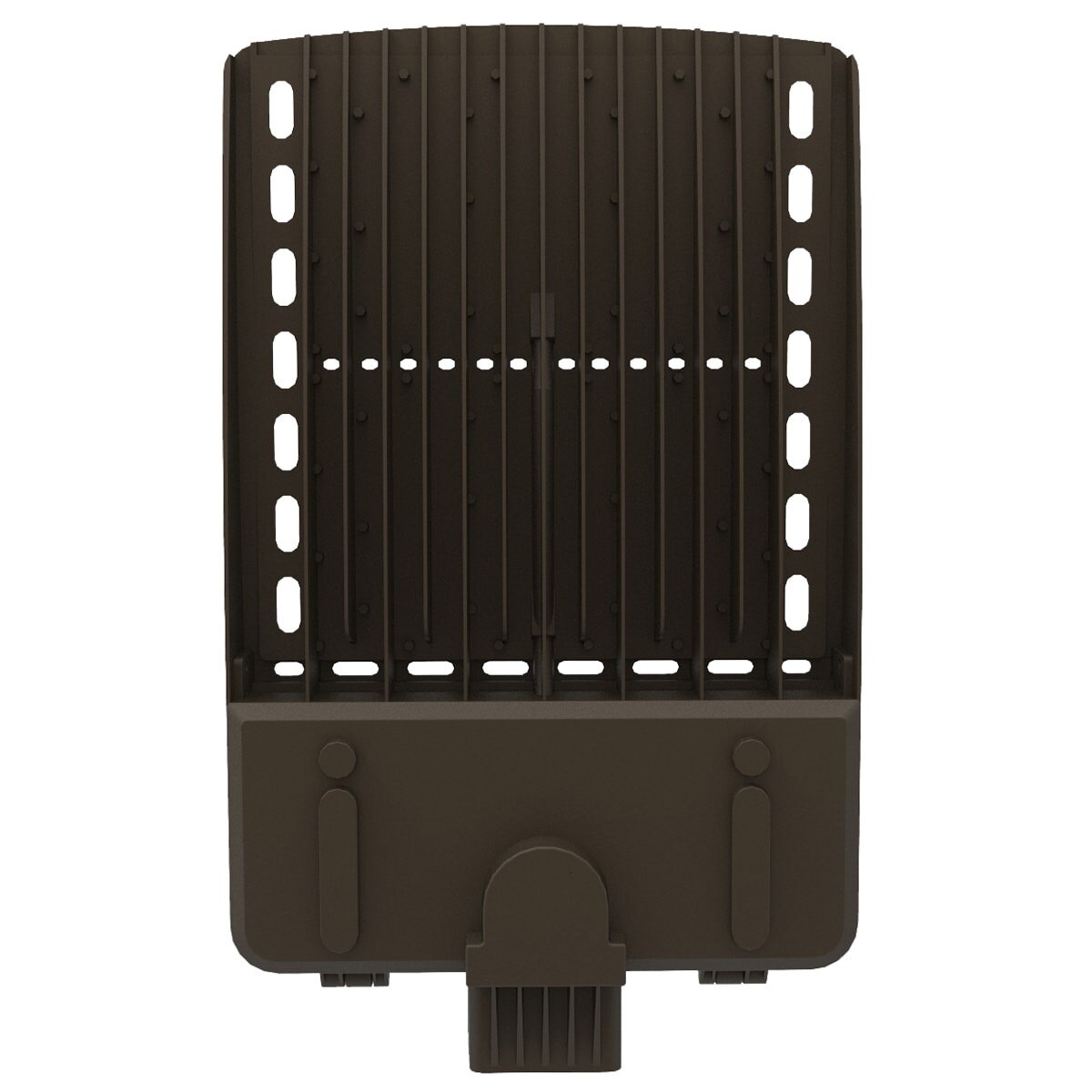

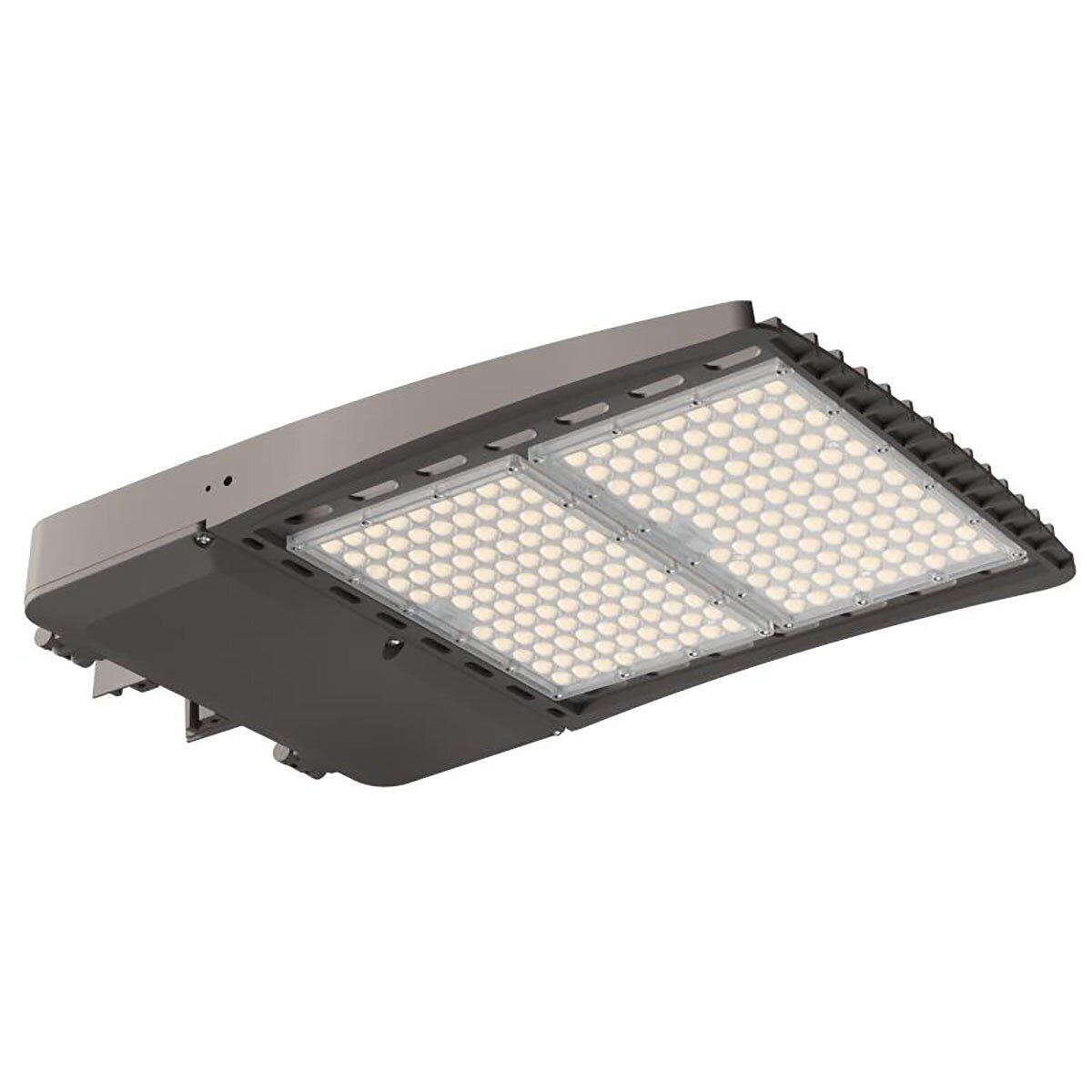

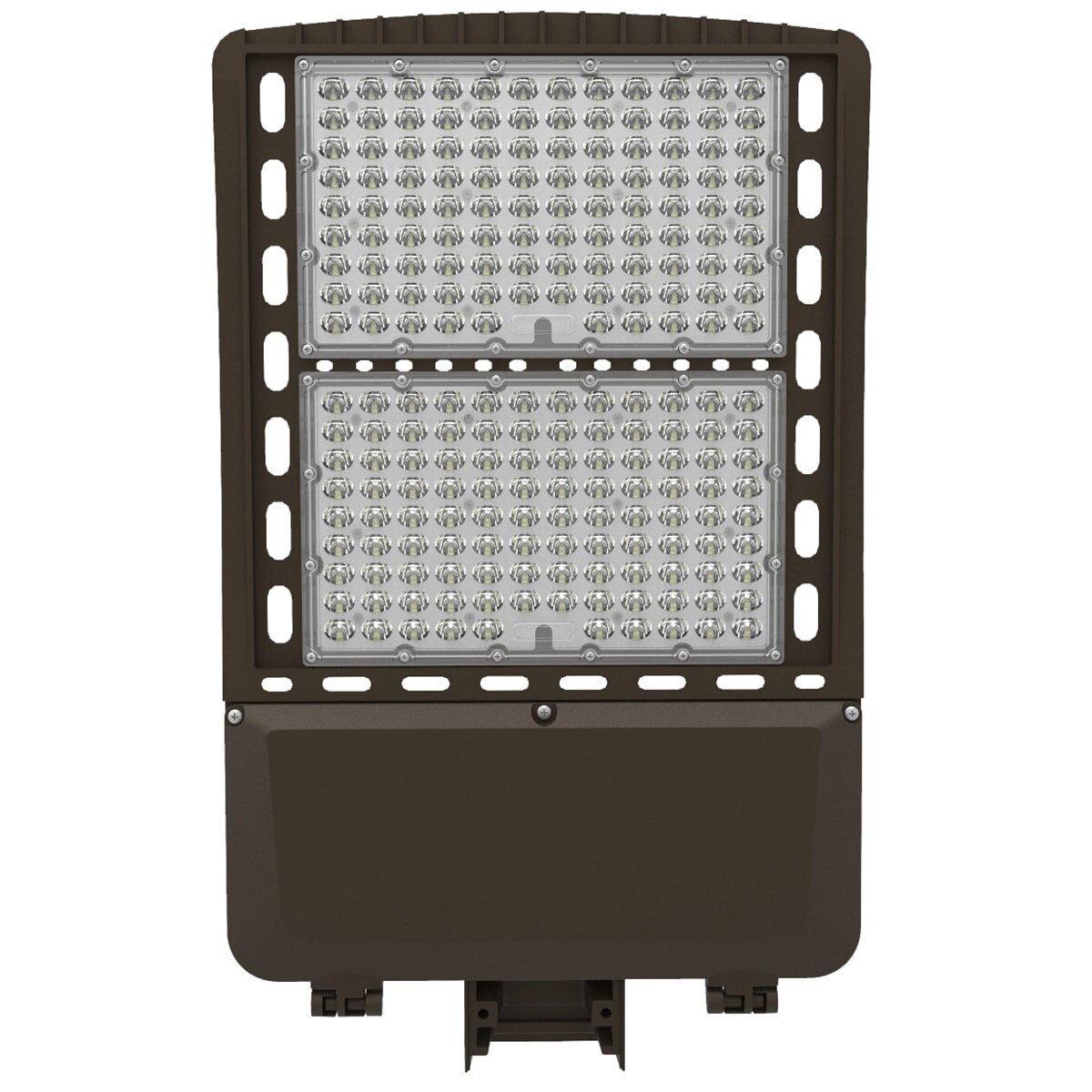

LOC-RGAL-MW(160/200/240/320) MCCT(30/40/50)D-T3LV - RGAL Series Area Light Area Light Multi Wattage 160W, 200W, 240W, 320W, Multi CCT 3000K, 4000K, 5000K, 145LM/W, Dimmable, AC120-277V, 10KV SPD, with Type 3 lens, IP65
MCCT(30/40/50)D-T3LV_00.jpg?resizeid=3&resizeh=600&resizew=600)
MCCT(30/40/50)D-T3LV_01.jpg?resizeid=3&resizeh=600&resizew=600)
MCCT(30/40/50)D-T3LV_02.jpg?resizeid=3&resizeh=600&resizew=600)
| Warehouses, stadiums, factories, parking lots, supermarkets, logistic centers, and exhibition halls. |
| • Lumileds 3030 LED Chips • Full cut off • Die-cast aluminum housing treated by anodic oxidation • Easy installation and maintenance • Corrosion and rust proof |
- Multi Wattage: 160W, 200W, 240W and 320W
- Default Wattage: 320W
- Multi CCT: 3,000K, 4,000K and 5,000K
- Default CCT: 5,000K
- 160W: 23,300LM 145LM/W
- 200W: 29,000LM 145LM/W
- 240W: 34,800LM 145LM/W
- 320W: 46,400LM 145LM/W
- Power Factor: 0.9
- CRI: 70
- THD: 20%
- 120-277Vac
- BUG Rating: B-U-G
- 0-10V dimming
- IP65 rated
- Type 3 lens
- 120° beam angle
- 50,000 hours lifetime | 5 year limited warranty
Spec Sheet
Installation Guide
LM79
IES File
Optional Mounting and Accessories:
Arm Mount
Slip Fitter Mount
U-Bracket Mount
Trunnion Mount
Rear Shield
LOC-ACY-S-MWS-01-G1 Microwave Sensor Spec Sheet
LOC-ACY-S-MWS-BT-01-G1 Bluetooth Microwave Sensor Spec Sheet
LOC-ACY-S-PIRS-01-G1 PIR Sensor Spec Sheet
LOC-ACY-S-PIRS-BT-01-G1 Bluetooth PIR Sensor Spec Sheet
LOC-RC-White-G1 Remote Control Spec Sheet
LOC-ANT-5-4T Motion Sensor Spec Sheet
LOC-SK-101-4T Photocell Spec Sheet
LOD-RC-100 Remote Control Spec Sheet
