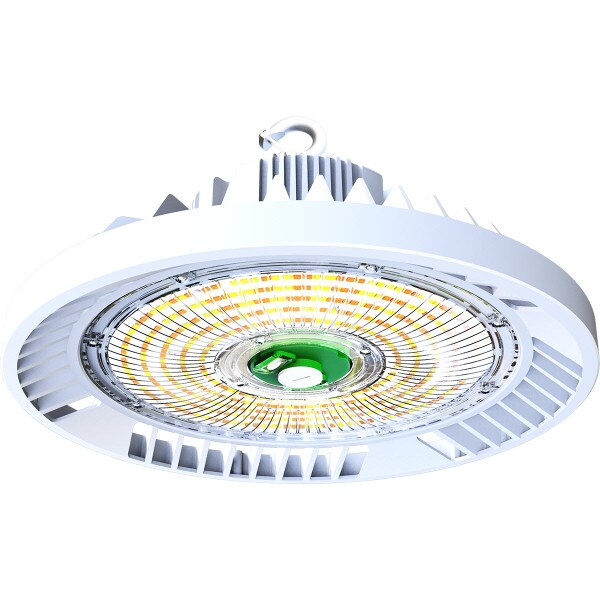

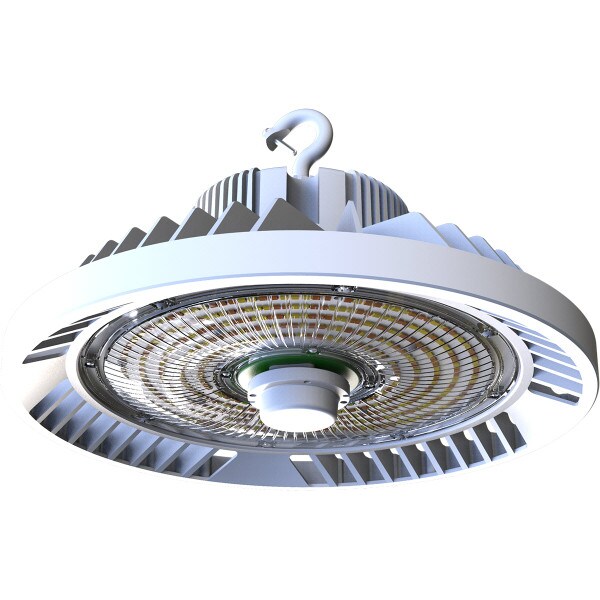

LOC-ELHB-MW(80/100/150) MCCT(30/40/50)-LV - White LED High Bay Multi Watt 80W, 100W and 150W, Multi CCT 3,000K, 4,000K and 5,000K, 11,600LM-21,750LM, 100-277V, 0-10V Dimming, 8-foot cord
MCCT(30/40/50)-LV (White)_00.jpg?resizeid=3&resizeh=600&resizew=600)
MCCT(30/40/50)-LV (White)_01.jpg?resizeid=3&resizeh=600&resizew=600)
| Suitable for warehouses, manufacturing facilities, convention centers, sporting arenas, big-box retail stores, cold storage facilities and gymnasiums. |
• Philips Lumiled 3030 LED chips • SPD 6KV • 8-foot cord • Corrosive resistant polyester powder coat finish • Aluminum Alloy • Corrosion and rust proof • Easy installation and maintenance |
- Multi Wattage: 80W, 100W and 150W
- Default Wattage: 150W
- CCT: 3,000K, 4,000K, 5,000K
- 80W: 11,600LM 145LM/W
- 100W: 14,500LM 145LM/W
- 150W: 21,750LM 145LM/W
- Power Factor: 0.95
- CRI: 70
- THD: 15%
- 100-277Vac, 50/60Hz
- 0-10V dimming
- IP66 rated
- 120° beam angle
- 50,000 hours lifetime | 5 year limited warranty
Spec Sheet
Installation Guide
LM79
IES File
Optional Mounting and Accessories:
LOC-ACY-S-MWS-01-G1 Microwave Sensor Spec Sheet
LOC-ACY-S-MWS-BT-01-G1 Bluetooth Microwave Sensor Spec Sheet
LOC-ACY-S-PIRS-01-G1 PIR Sensor Spec Sheet
LOC-ACY-S-PIRS-BT-01-G1 Bluetooth PIR Sensor Spec Sheet
LOC-RC-White-G1 Remote Control Spec Sheet
LOC-ANT-5-4T Motion Sensor Spec Sheet
LOC-SK-101-4T Photocell Spec Sheet
LOD-RC-100 Remote Control Spec Sheet
