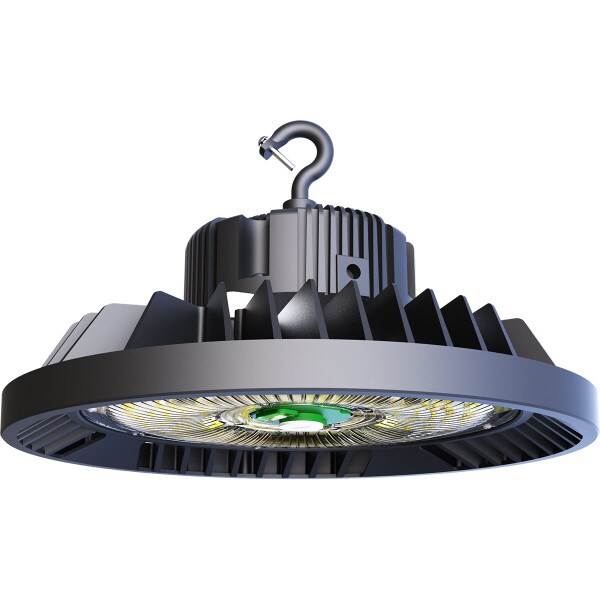

LOC-ELHB-MW(180/200/250) MCCT(30/40/50)-HV - LED High Bay Light Multi Watt 180W, 200W and 250W, Multi CCT 3,000K, 4,000K and 5,000K, 24,300LM-33,750LM, 135lm/W, 277-480V, 0-10V Dimming
MCCT(30/40/50)-HV_00.jpg?resizeid=3&resizeh=600&resizew=600)
| Suitable for warehouses, manufacturing facilities, convention centers, sporting arenas, big-box retail stores, cold storage facilities and gymnasiums. |
• Philips Lumiled 3030 LED chips • SPD 6KV • 8-foot cord • Corrosive resistant polyester powder coat finish • Aluminum Alloy • Corrosion and rust proof • Easy installation and maintenance |
- Multi Wattage: 180W, 200W and 250W
- Default Wattage: 250W
- CCT: 3,000K, 4,000K, 5,000K
- Default CCT: 5,000K
- 180W: 24,300LM 135LM/W
- 200W: 27,000LM 135LM/W
- 250W: 33,750LM 135LM/W
- Power Factor: 0.95
- CRI: 70
- THD: 15%
- 277-480Vac, 50/60Hz
- 0-10V dimming
- IP66 rated
- 120° beam angle
- 50,000 hours lifetime | 5 year limited warranty
Spec Sheet
Installation Guide
LM79
IES File
Optional Mounting and Accessories:
LOC-ACY-S-MWS-01-G1 Microwave Sensor Spec Sheet
LOC-ACY-S-MWS-BT-01-G1 Bluetooth Microwave Sensor Spec Sheet
LOC-ACY-S-PIRS-01-G1 PIR Sensor Spec Sheet
LOC-ACY-S-PIRS-BT-01-G1 Bluetooth PIR Sensor Spec Sheet
LOC-RC-White-G1 Remote Control Spec Sheet
LOC-ANT-5-4T Motion Sensor Spec Sheet
LOC-SK-101-4T Photocell Spec Sheet
LOD-RC-100 Remote Control Spec Sheet
