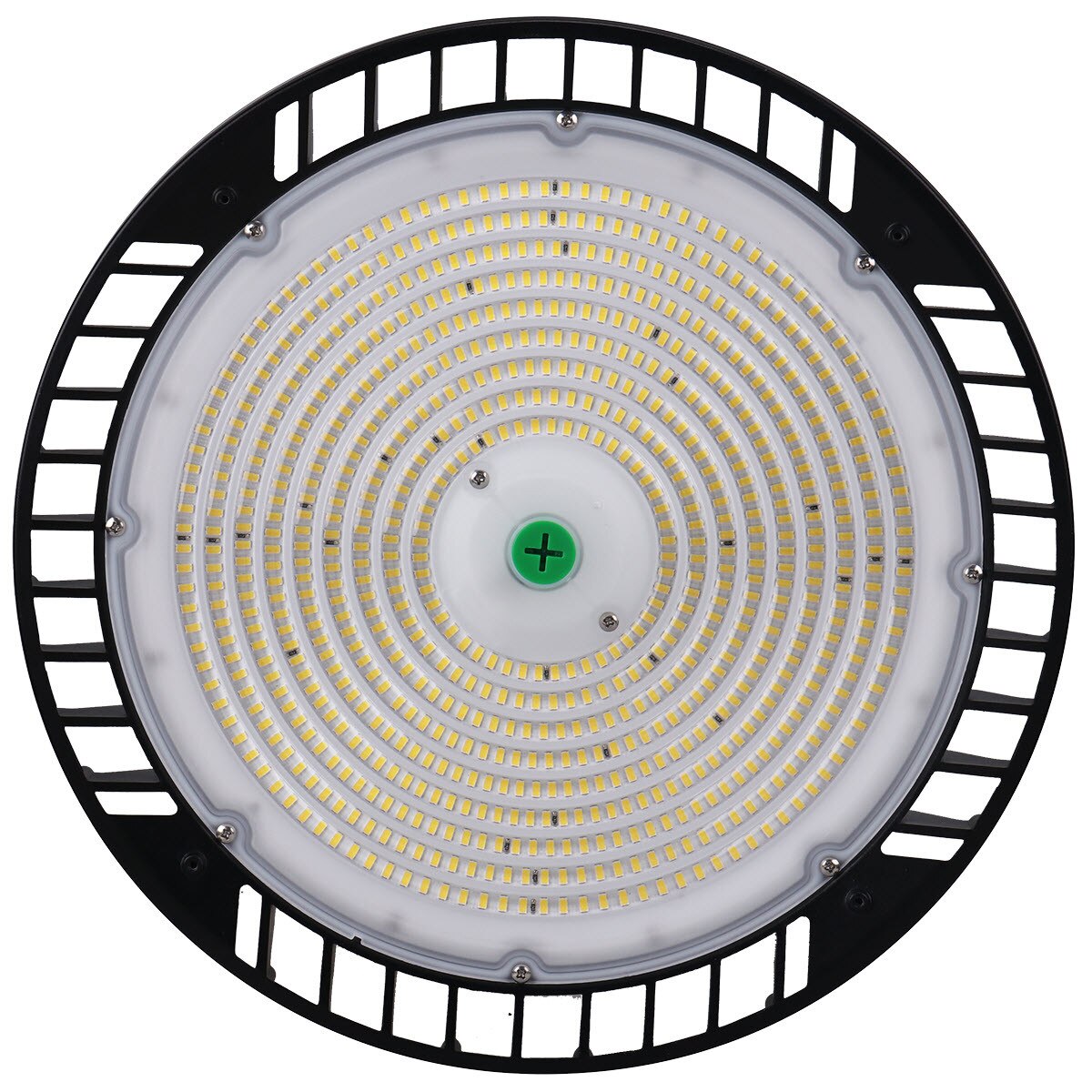

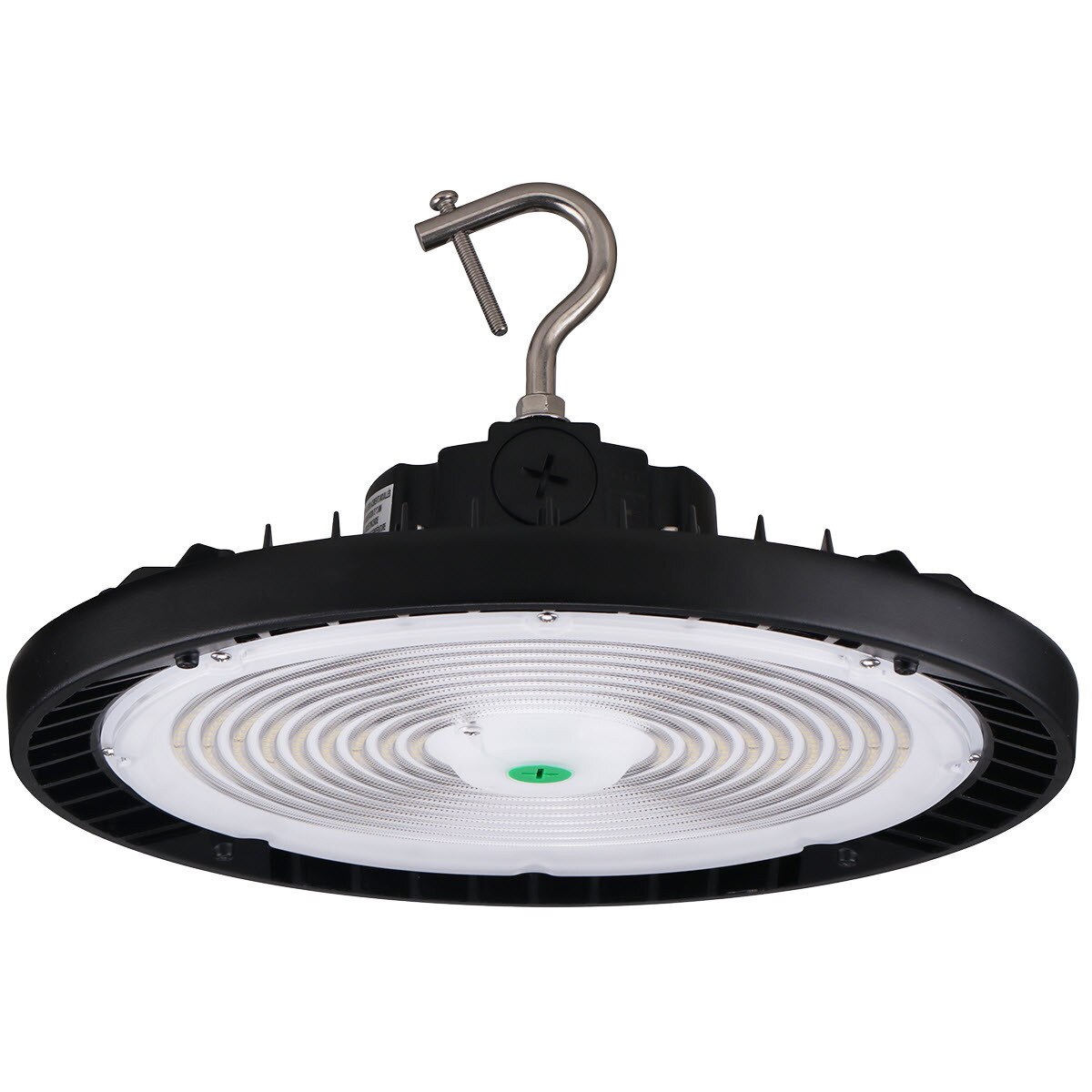

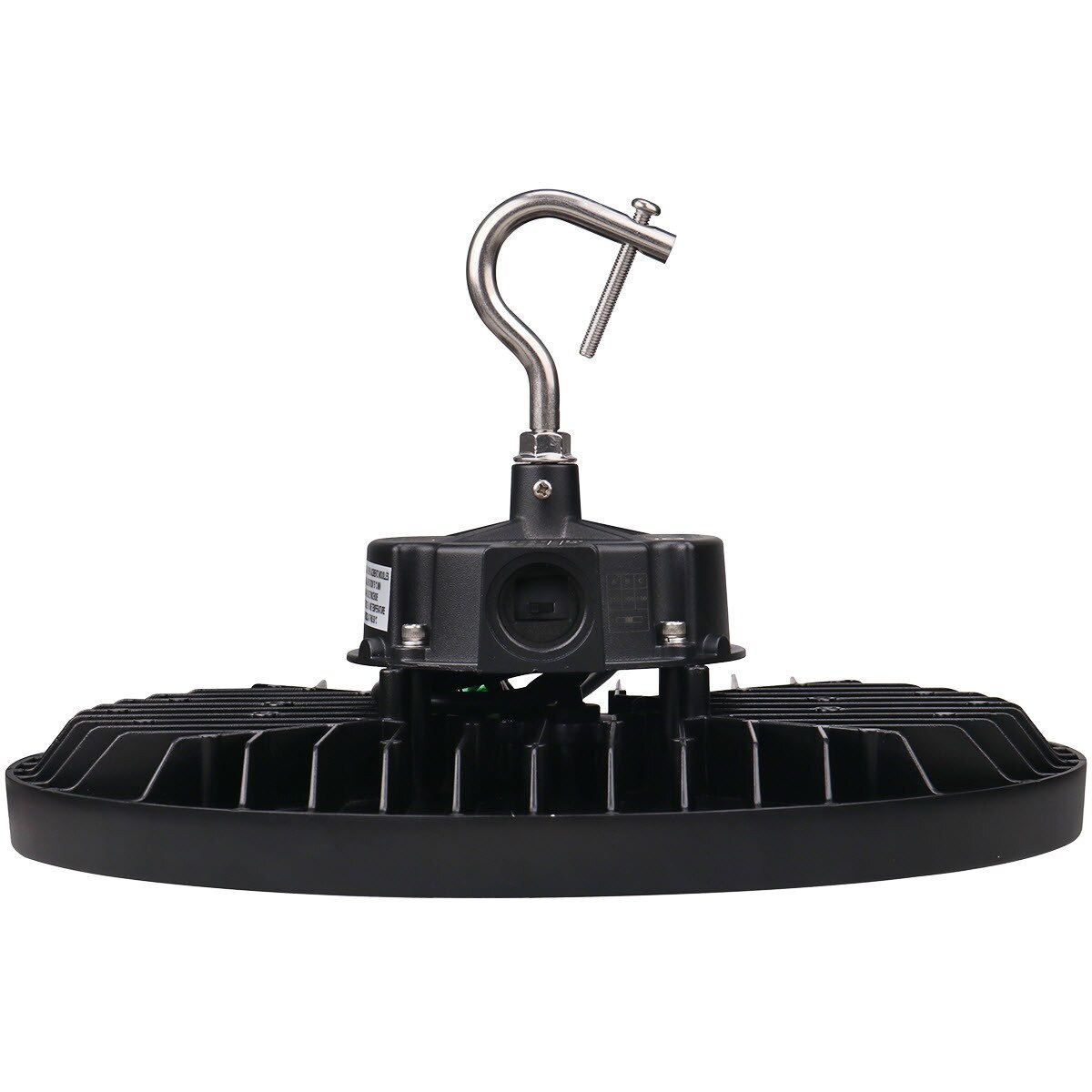

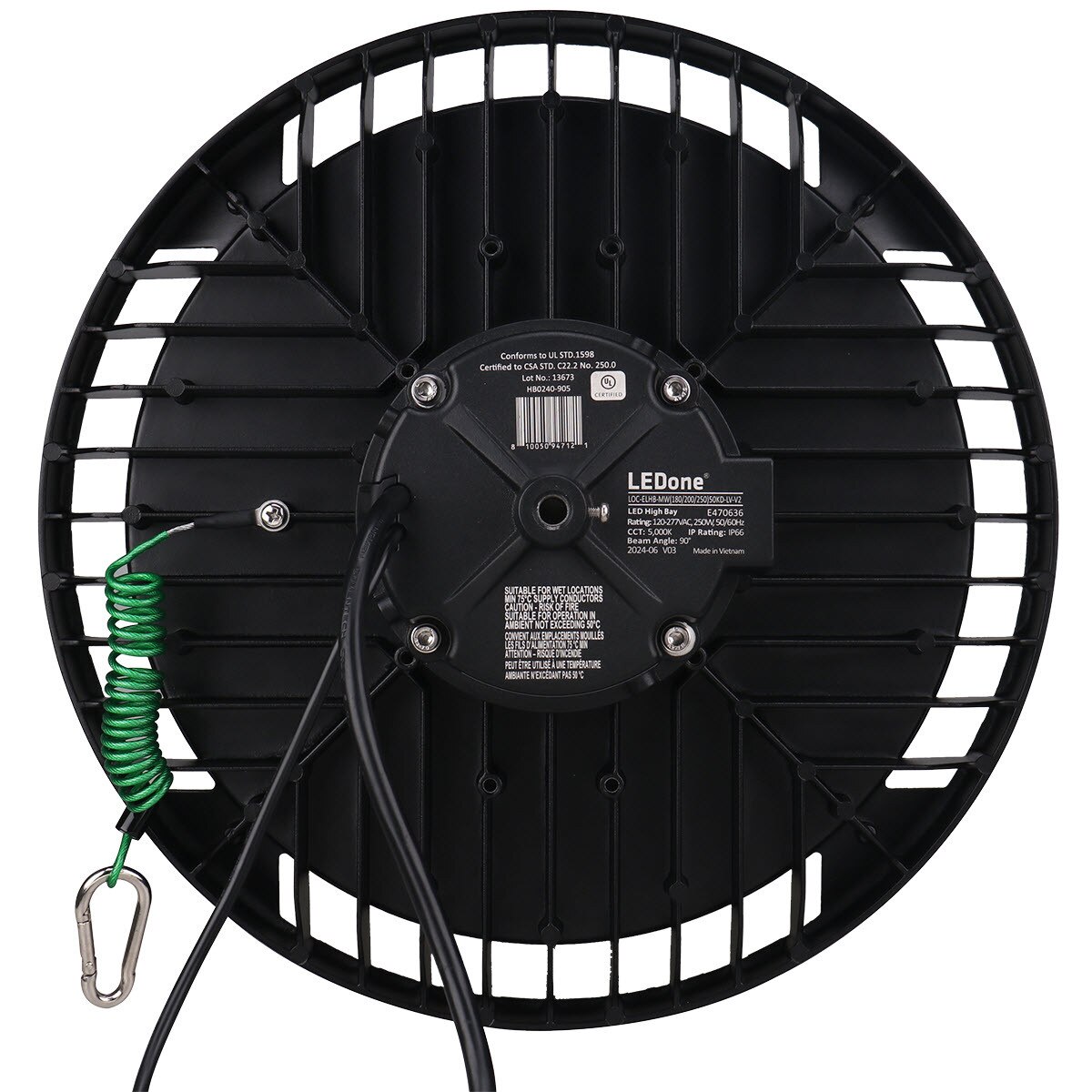

LOC-ELHB-MW(180/200/250)50KD-LV-V2 - LED High Bay Light Multi Watt 180W, 200W and 250W, 28,990LM-40,265LM, 161.06LM/W, 5000K, 120-277V, 0-10V Dimming
Suitable for warehouses, manufacturing facilities, convention centers, sporting arenas, big-box retail stores, cold storage facilities and gymnasiums. |

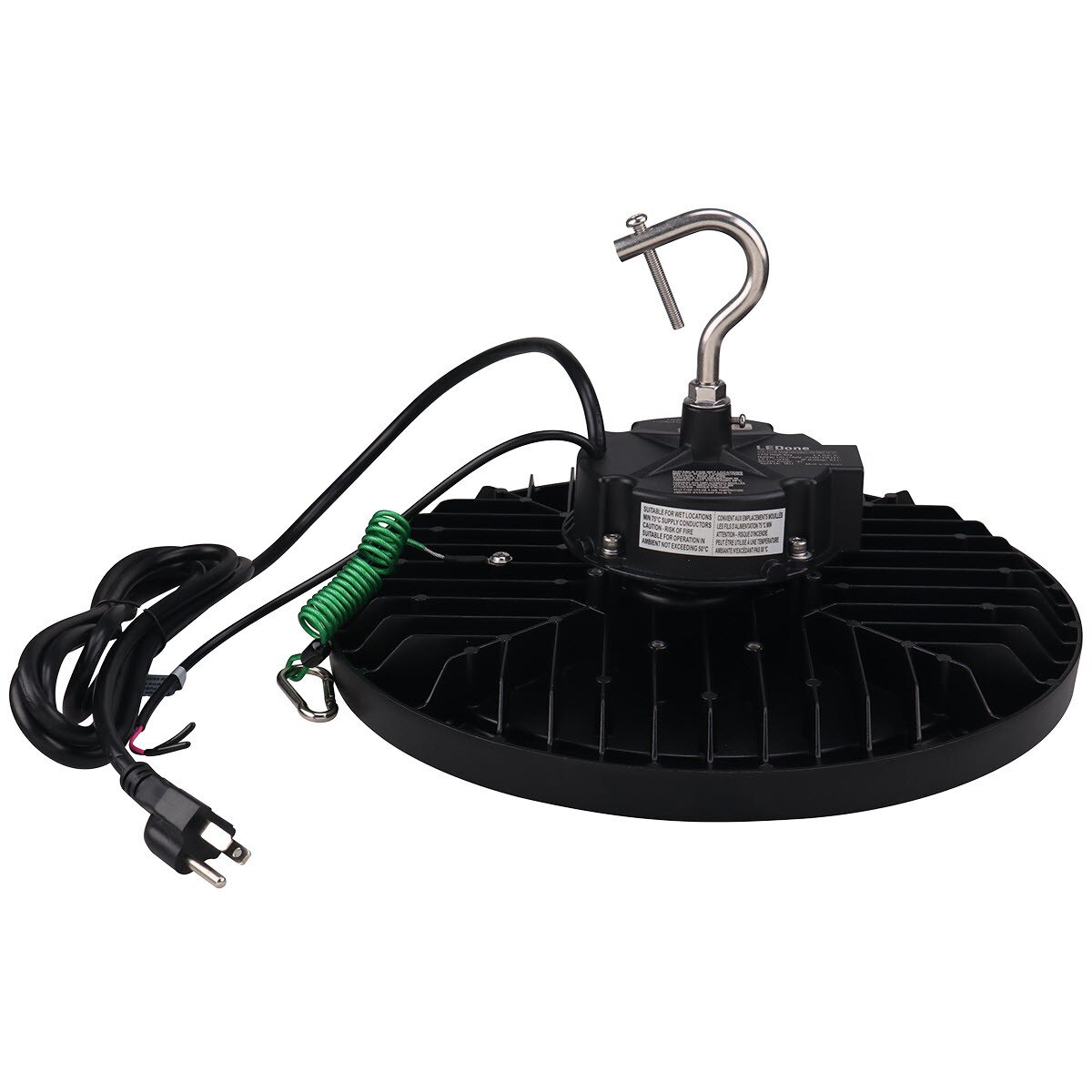

• Philips Lumiled 3030 LED chips • SPD 6KV • 7.5-foot cord • Corrosive resistant polyester powder coat finish • Aluminum Alloy • Corrosion and rust proof • Easy installation and maintenance |
- Multi Wattage: 180W, 200W and 250W
- Default Wattage: 250W
- CCT: 5,000K
- 180W: 28,990.8LM 161.06LM/W
- 200W: 32,212LM 161.06LM/W
- 250W: 40,265LM 161.06LM/W
- Power Factor: 0.9
- CRI: 83
- THD: 15%
- 120-277Vac, 50/60Hz
- 0-10V dimming
- IP65 rated
- 90° beam angle
- 50,000 hours lifetime | 5 year limited warranty
Spec Sheet
Installation Guide
Optional Mounting and Accessories:
LOC-ELHB-V2-PCD
LOC-ELHB-V2-250WPCR
LOC-ELHB-V2-ADPT
LOC-ELHB-V2-UBRK LOC-ACY-S-MWS-01-G1 Microwave Sensor Spec Sheet
LOC-ACY-S-MWS-BT-01-G1 Bluetooth Microwave Sensor Spec Sheet
LOC-ACY-S-PIRS-01-G1 PIR Sensor Spec Sheet
LOC-ACY-S-PIRS-BT-01-G1 Bluetooth PIR Sensor Spec Sheet
LOC-RC-White-G1 Remote Control Spec Sheet
LOC-SK-101-4T Photocell Spec Sheet
