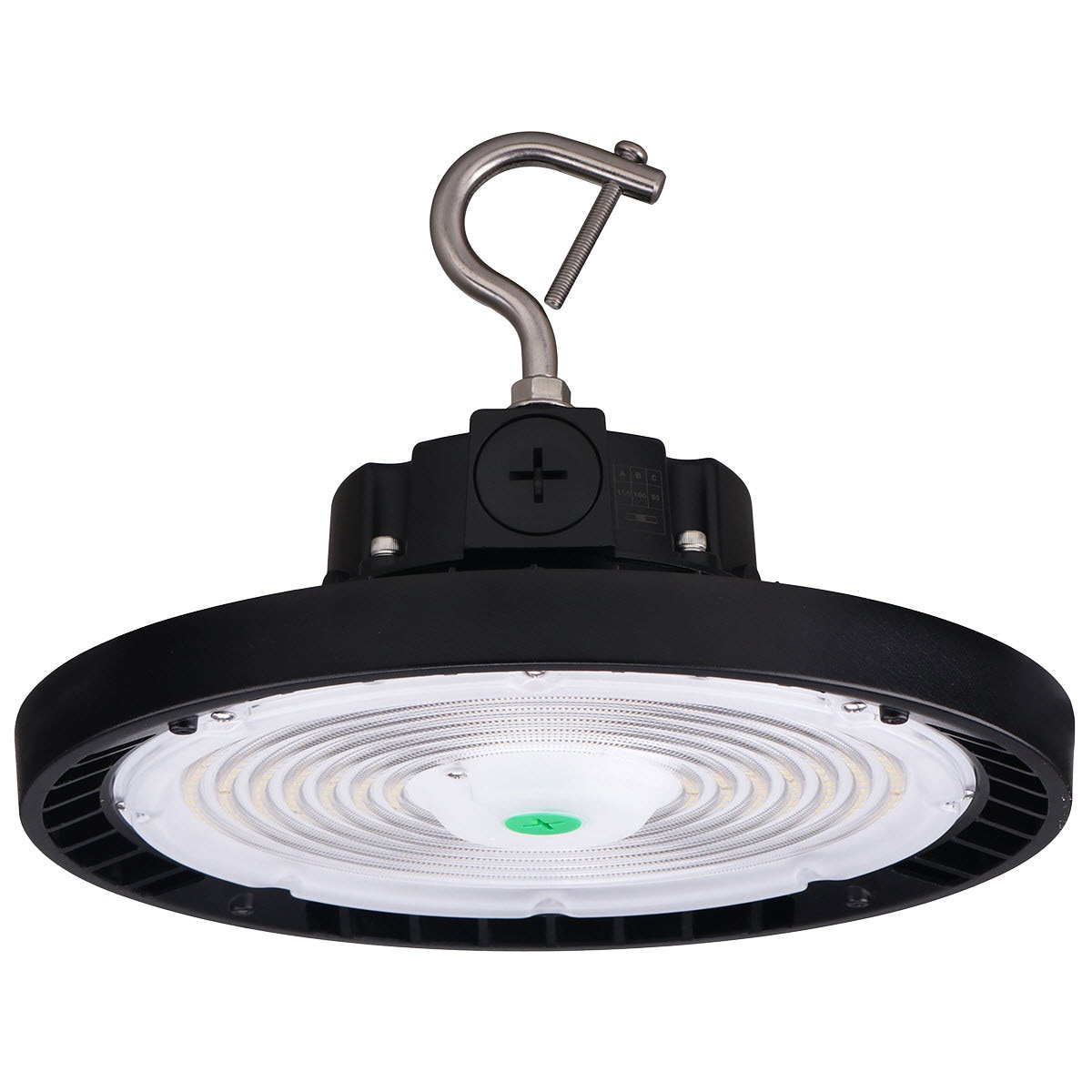

LOC-ELHB-MW(80/100/150)50KD-LV-V2 - LED High Bay Light Multi Watt 80W, 100W and 150W, 12,990LM-24,256LM, 161.71LM/W, 5000K, 120-277V, 0-10V Dimming
50KD-LV-V2_00.jpg?resizeid=3&resizeh=600&resizew=600)
50KD-LV-V2_01.jpg?resizeid=3&resizeh=600&resizew=600)
50KD-LV-V2_02.jpg?resizeid=3&resizeh=600&resizew=600)
50KD-LV-V2_03.jpg?resizeid=3&resizeh=600&resizew=600)
50KD-LV-V2_04.jpg?resizeid=3&resizeh=600&resizew=600)
| Suitable for warehouses, manufacturing facilities, convention centers, sporting arenas, big-box retail stores, cold storage facilities and gymnasiums. |
| • Philips Lumiled 3030 LED chips • SPD 6KV • 7.5-foot cord • Corrosive resistant polyester powder coat finish • Aluminum Alloy • Corrosion and rust proof • Easy installation and maintenance |
- Multi Wattage: 80W, 100W and 150W
- Default Wattage: 150W
- CCT: 5,000K
- 80W: 12,936.8LM 161.71LM/W
- 100W: 16,171LM 161.71LM/W
- 150W: 24,256.5LM 161.71LM/W
- Power Factor: 0.9
- CRI: 84
- THD: 15%
- 120-277Vac, 50/60Hz
- 0-10V dimming
- IP65 rated
- 90° beam angle
- 50,000 hours lifetime | 5 year limited warranty
Spec Sheet
Installation Guide
IES Files
Optional Mounting and Accessories:
LOC-ELHB-V2-PCD
LOC-ELHB-V2-150WPCR
LOC-ELHB-V2-ADPT
LOC-ELHB-V2-UBRK
LOC-ACY-S-MWS-01-G1 Microwave Sensor Spec Sheet
LOC-ACY-S-MWS-BT-01-G1 Bluetooth Microwave Sensor Spec Sheet
LOC-ACY-S-PIRS-01-G1 PIR Sensor Spec Sheet
LOC-ACY-S-PIRS-BT-01-G1 Bluetooth PIR Sensor Spec Sheet
LOC-RC-White-G1 Remote Control Spec Sheet
LOC-SK-101-4T Photocell Spec Sheet
