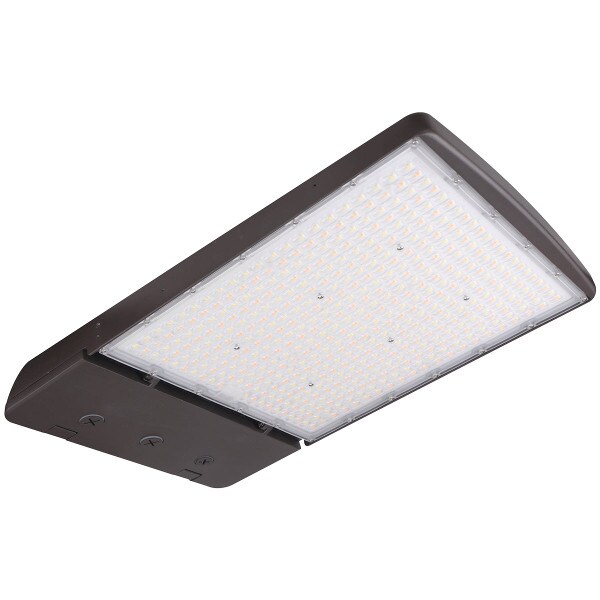

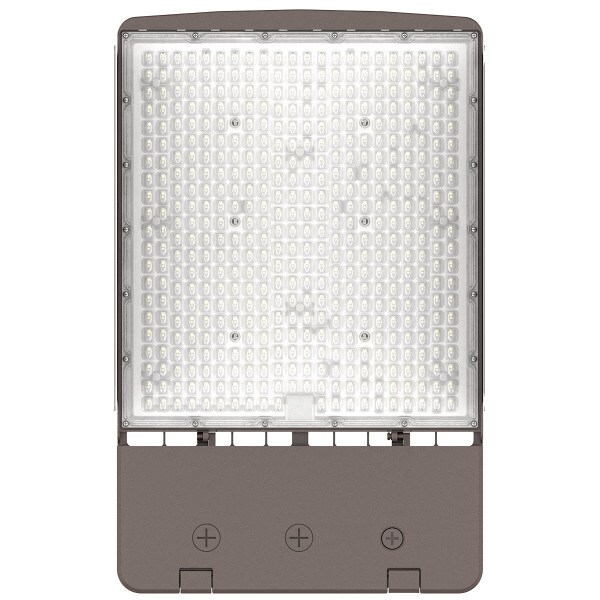

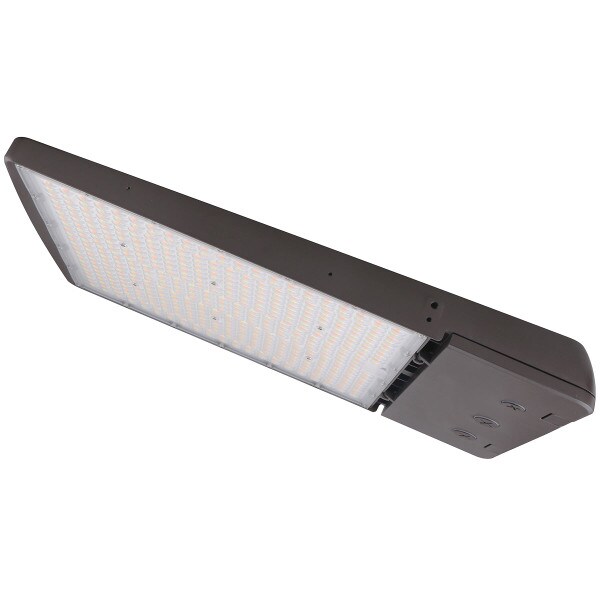

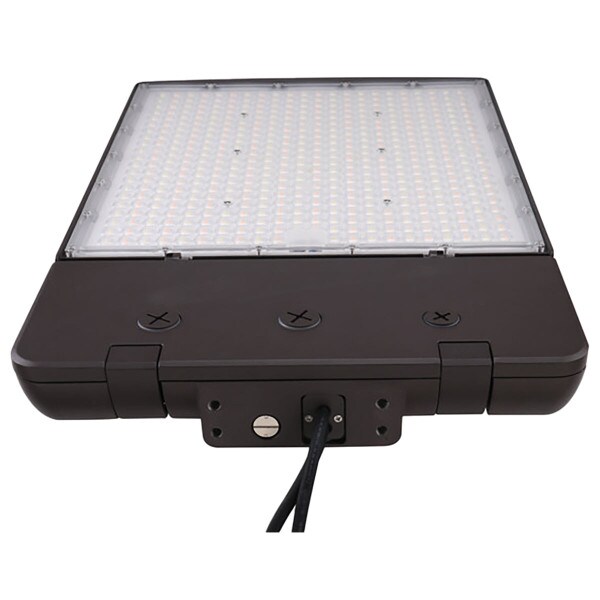

LOC-ALAL-MW(180/200/240/320) MCCT(30/40/50)-LV - ALAL Series Area Light Multi Wattage 180W, 200W, 240W, 320W, Multi CCT 3000K, 4000K, 5000K, Multi Lens T3, T4, T5, 145.6lm/W, Dimmable, AC120-277V
MCCT(30/40/50)-LV_00.jpg?resizeid=3&resizeh=600&resizew=600)
MCCT(30/40/50)-LV_01.jpg?resizeid=3&resizeh=600&resizew=600)
MCCT(30/40/50)-LV_02.jpg?resizeid=3&resizeh=600&resizew=600)
MCCT(30/40/50)-LV_03.jpg?resizeid=3&resizeh=600&resizew=600)
| Warehouses, stadiums, factories, parking lots, supermarkets, logistic centers, and exhibition halls. |
• Adjustable lens: Type III, Type IV or Type V • Lumileds 2835 LED Chips |
- Multi Wattage: 180W, 200W, 240W and 320W
- Default Wattage: 320W
- Multi CCT: 3,000K, 4,000K and 5,000K
- Default CCT: 5,000K
- Multi Lens: T3, T4 and T5
- Default Lens: T3
- 180W: 26,208LM 145.6lm/W
- 200W: 29,120LM 145.6lm/W
- 240W: 34,944LM 145.6lm/W
- 320W: 46,592LM 145.6lm/W
- Power Factor: 0.9
- CRI: 83
- THD: 15%
- 120-277Vac
- BUG Rating: B4-U0-G4
- 0-10V dimming
- IP65 rated
- 120° beam angle
- 50,000 hours lifetime | 5 year limited warranty
Spec Sheet
Installation Guide
Optional Mounting and Accessories:
Arm Mount
Slip Fitter Mount
Trunnion Mount
LOC-ACY-S-MWS-01-G1 Microwave Sensor Spec Sheet
LOC-ACY-S-MWS-BT-01-G1 Bluetooth Microwave Sensor Spec Sheet
LOC-ACY-S-PIRS-01-G1 PIR Sensor Spec Sheet
LOC-ACY-S-PIRS-BT-01-G1 Bluetooth PIR Sensor Spec Sheet
LOC-RC-White-G1 Remote Control Spec Sheet
