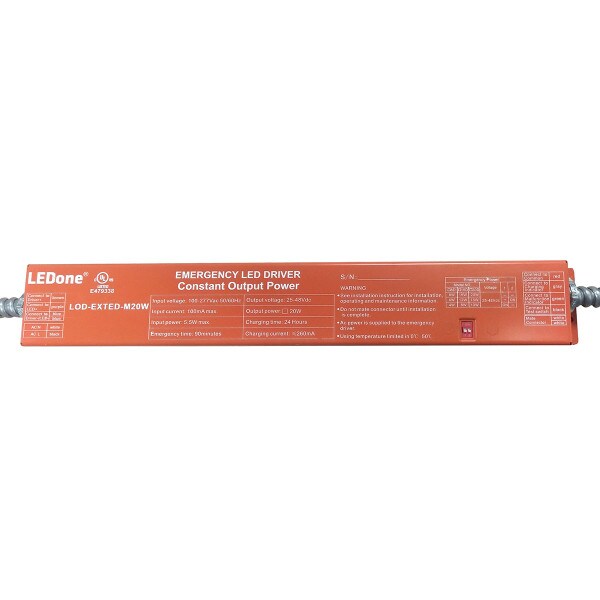

LOD-EXTED-M20W - 20W Emergency backup battery, UL Listed
| The LED emergency backup battery allows LED fixtures to be used as emergency lighting units. Product range to cover a variety of LED fixtures. It is used for both normal and emergency operation, switches to the emergency mode after a blackout. |
• Constant output power (auto-sensing output within each range) • Output class 2 complaint • Over voltage protection • Low voltage protection • Over temperature protection • Short circuit protection |
- Output Power: 20W max.
- Universal Input Voltage: 120-277Vac, 50/60Hz
- AC Input Current: 90mA max.
- AC Input Power Rating: 6.0W max.
- Output Current and Voltage: 420-800mA 25-48Vdc (class 2)
- Illumination Time: 90 minutes
- Recharge Time: 24 hours
- Battery Charging Current: 250mA
- 5 year limited warranty
