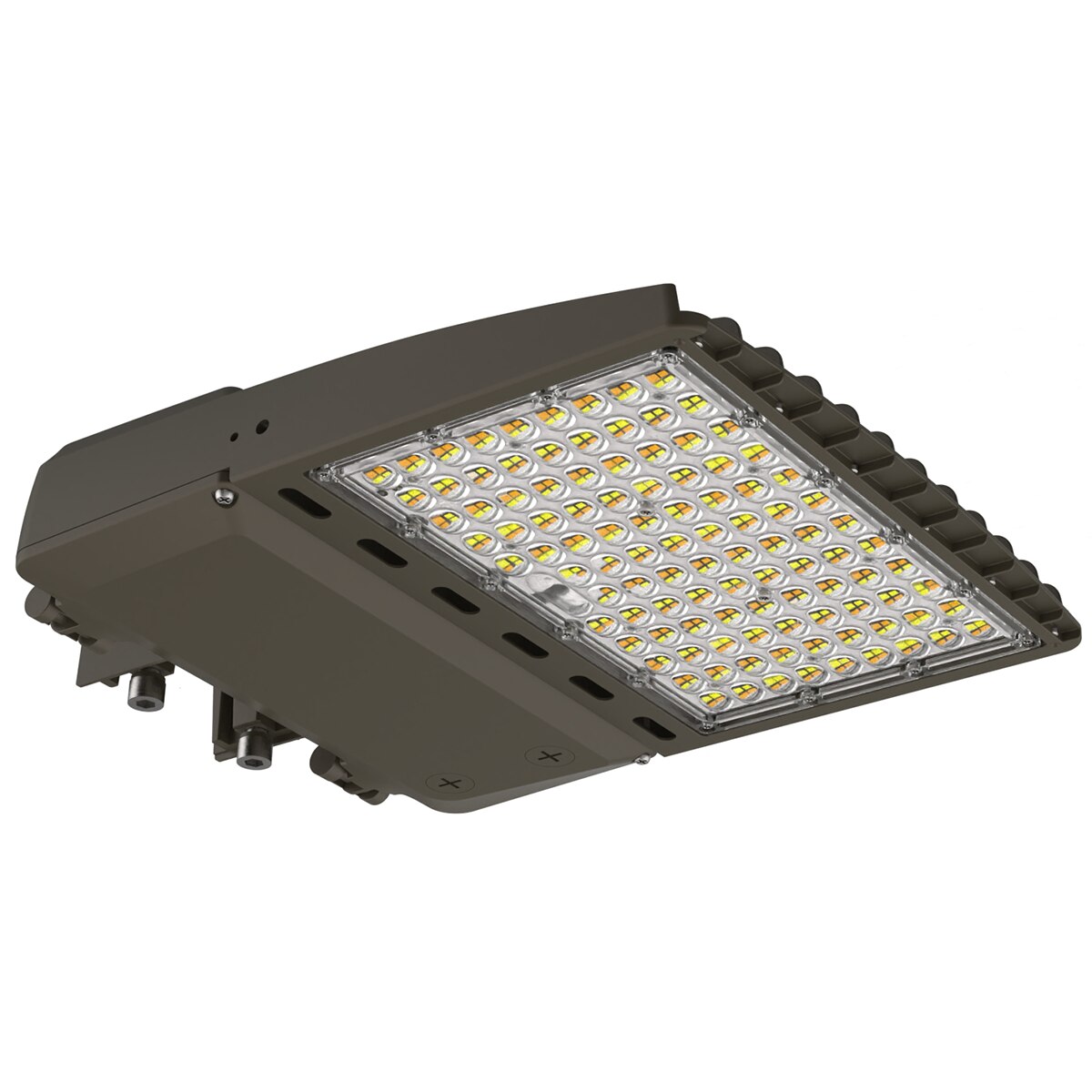

LOC-RGAL-MW(75/100/120/150) MCCT(30/40/50)D-T3HV - RGAL Series Area Light Area Light Multi Wattage 75W, 100W, 120W, 150W, Multi CCT 3000K, 4000K, 5000K, 148LM/W, Dimmable, AC277-480V, 10KV SPD, with Type 3 lens, IP65
MCCT(30/40/50)D-T3HV_00.png?resizeid=3&resizeh=600&resizew=600)
| Warehouses, stadiums, factories, parking lots, supermarkets, logistic centers, and exhibition halls. |
| • Lumileds 3030 LED Chips •Full cut off • Die-cast aluminum housing treated by anodic oxidation • Easy installation and maintenance • Corrosion and rust proof |
- Multi Wattage: 75W, 100W, 120W and 150W
- Default Wattage: 150W
- Multi CCT: 3,000K, 4,000K and 5,000K
- Default CCT: 5,000K
- 75W: 11,100LM 148LM/W
- 100W: 14,800LM 148LM/W
- 120W: 17,760LM 148LM/W
- 150W: 22,200LM 148LM/W
- Power Factor: 0.9
- CRI: 70
- THD: 15%
- 277-480Vac
- BUG Rating: B4-U3-G4
- 0-10V dimming
- IP65 rated
- Type 3 lens
- 120° beam angle
- 50,000 hours lifetime | 5 year limited warranty
Spec Sheet
Installation Guide
LM79
IES File
Optional Mounting and Accessories:
Arm Mount
Slip Fitter Mount
U-Bracket Mount
Trunnion Mount
Rear Shield
LOC-ACY-S-MWS-01-G1 Microwave Sensor Spec Sheet
LOC-ACY-S-MWS-BT-01-G1 Bluetooth Microwave Sensor Spec Sheet
LOC-ACY-S-PIRS-01-G1 PIR Sensor Spec Sheet
LOC-ACY-S-PIRS-BT-01-G1 Bluetooth PIR Sensor Spec Sheet
LOC-RC-White-G1 Remote Control Spec Sheet
LOC-ANT-5-4T Motion Sensor Spec Sheet
LOC-SK-101-4T Photocell Spec Sheet
LOD-RC-100 Remote Control Spec Sheet
