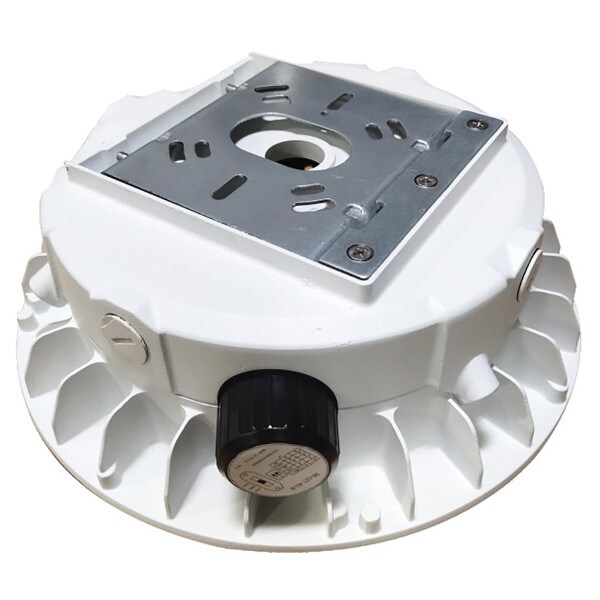

LOC-RDCP-MW(40/50/60/75) MCCT(30/40/50)DLV - LED Canopy, Multi Wattage 40W, 50W, 60W and 75W, Multi CCT 3,000K, 4,000K and 5,000K, 135LM/W, Dimmable, AC120-277V, IP65, White
MCCT(30/40/50)DLV (White)_00.jpg?resizeid=3&resizeh=600&resizew=600)
MCCT(30/40/50)DLV (White)_01.jpg?resizeid=3&resizeh=600&resizew=600)
MCCT(30/40/50)DLV (White)_02.jpg?resizeid=3&resizeh=600&resizew=600)
MCCT(30/40/50)DLV (White)_03.jpg?resizeid=3&resizeh=600&resizew=600)
| Warehouses, stadiums, factories, parking lots, shopping malls, supermarkets, logistic centers, auto dealerships and more. |
| • Seoul 2835 LED chips • Polyester powder-coated finish • Corrosion and rust proof • Easy installation • Mercury Free • No UV |
- Multi Wattage: 40W, 50W, 60W and 75W
- Default Wattage: 75W
- Multi CCT: 3,000K, 4,000K and 5,000K
- Default CCT: 5,000K
- 40W: 5,400LM 135LM/W
- 50W: 6,750LM 135LM/W
- 60W: 8,100LM 135LM/W
- 75W: 10,125LM 135LM/W
- Power Factor: 0.9
- CRI: 70
- THD: 20%
- 120-277Vac, 50/60Hz
- 0-10V dimming
- IP65 rated
- 135° beam angle
- 50,000 hours lifetime | 5 year limited warranty
ul>- Multi Wattage: 40W, 50W, 60W and 75W
- Default Wattage: 75W
- Multi CCT: 3,000K, 4,000K and 5,000K
- Default CCT: 5,000K
- 40W: 5,400LM 135LM/W
- 50W: 6,750LM 135LM/W
- 60W: 8,100LM 135LM/W
- 75W: 9,640LM 132.99LM/W
- Power Factor: 0.924
- CRI: 71
- THD: 20%
- 120-277Vac, 50/60Hz
- 0-10V dimming
- IP65 rated
- 135° beam angle
- 50,000 hours lifetime | 5 year warranty
Spec Sheet
Installation Guide
LM79
IES
Optional Accessories:
LOC-ACY-S-MWS-01-G1 Microwave Sensor Spec Sheet
LOC-ACY-S-MWS-BT-01-G1 Bluetooth Microwave Sensor Spec Sheet
LOC-ACY-S-PIRS-01-G1 PIR Sensor Spec Sheet
LOC-ACY-S-PIRS-BT-01-G1 Bluetooth PIR Sensor Spec Sheet
LOC-RC-White-G1 Remote Control Spec Sheet
LOC-ANT-5-4T Motion Sensor Spec Sheet
LOC-SK-101-4T Photocell Spec Sheet
LOD-RC-100 Remote Control Spec Sheet
