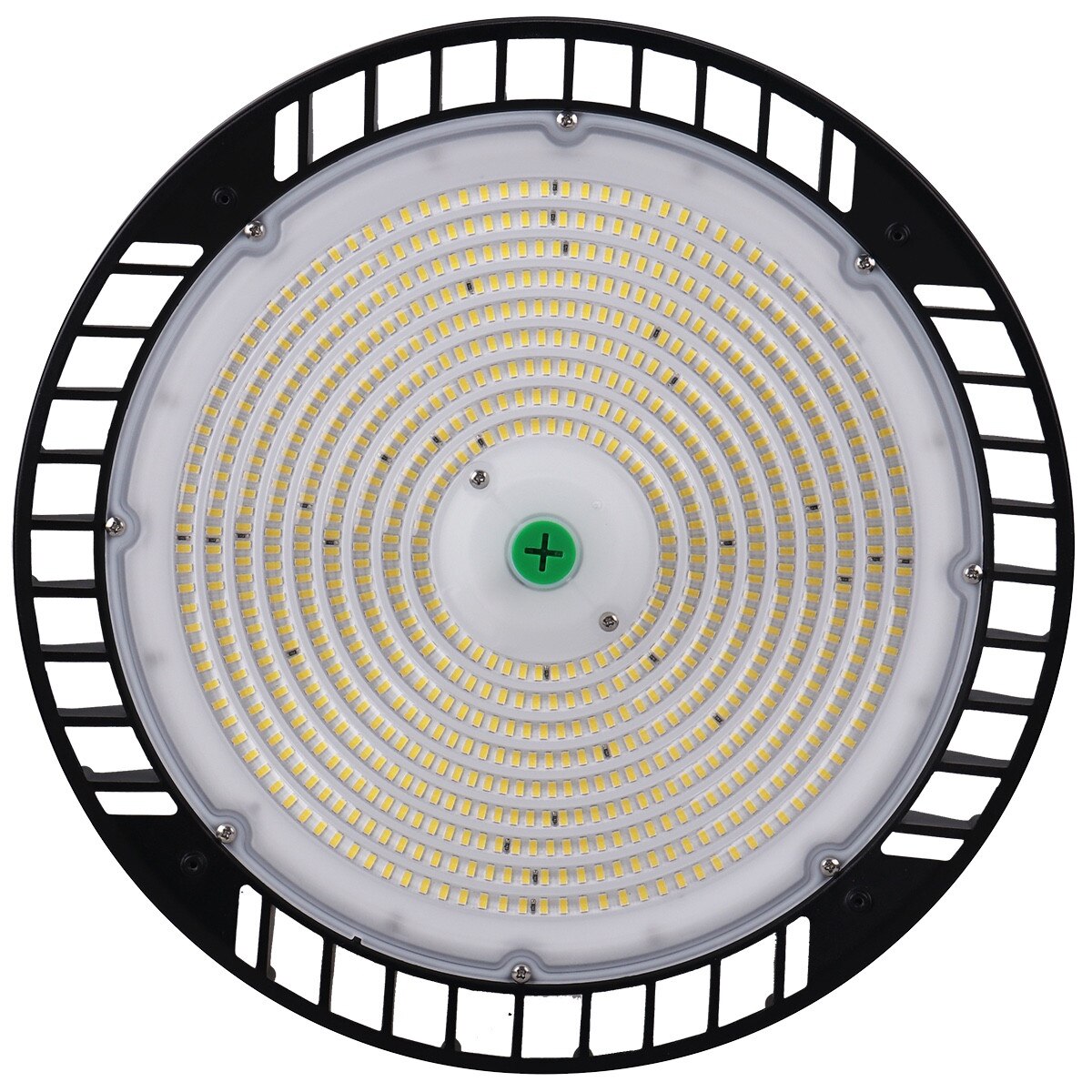

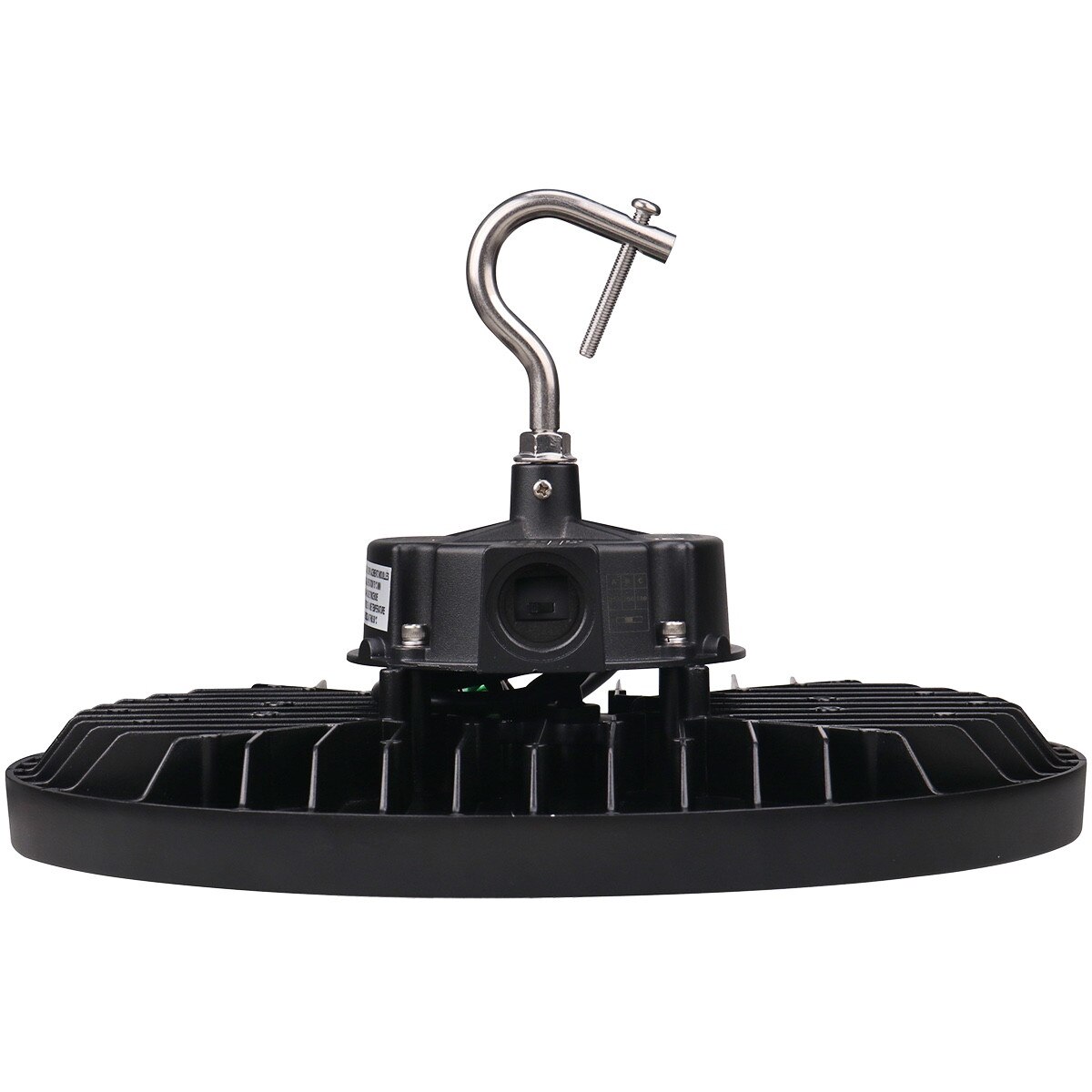

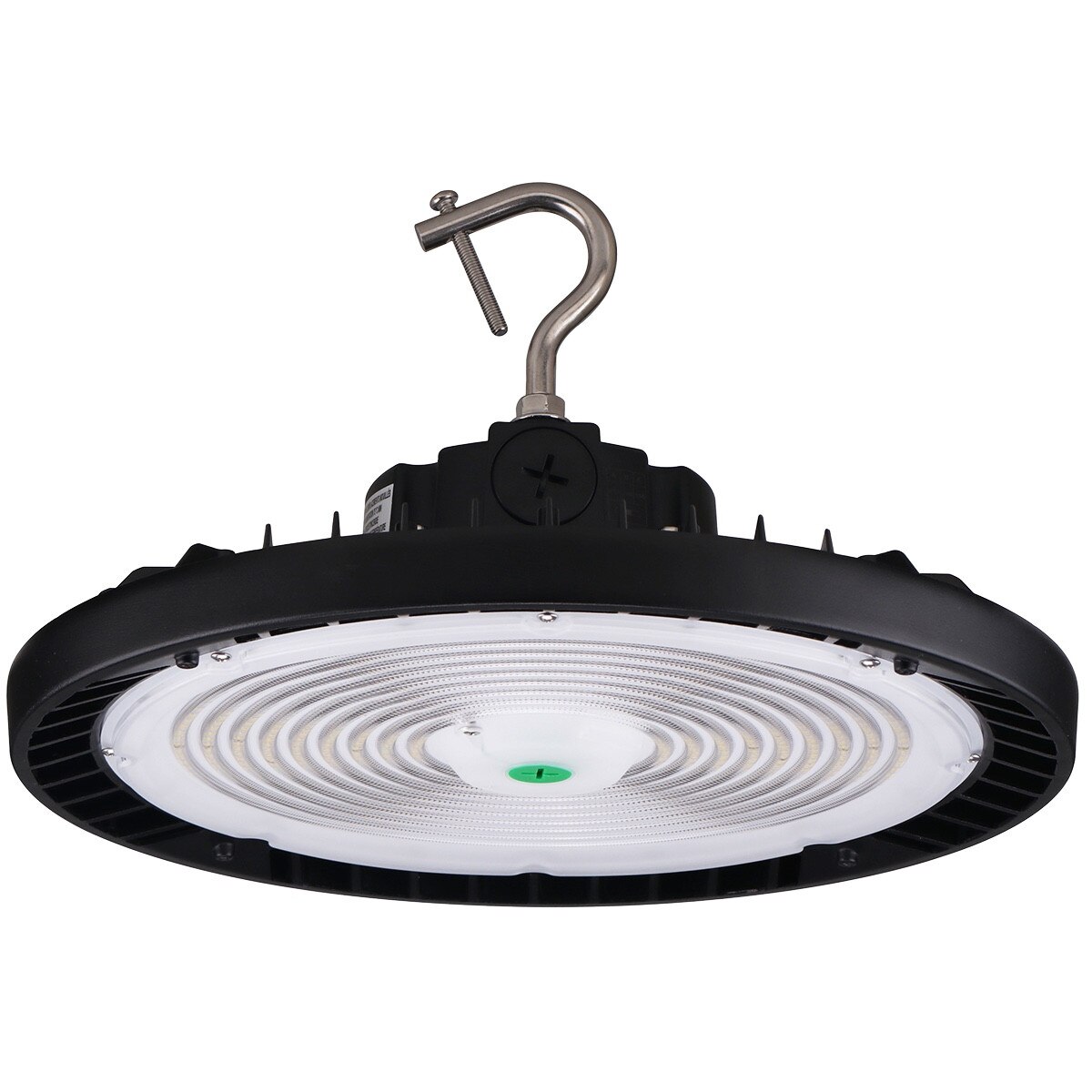

LOC-ELHB-MW(180/200/250) MCCT(35/40/50)HV-V2 - LED High Bay Light Multi Watt 180W, 200W and 250W, Multi CCT 3,500K, 4,000K and 5,000K, 25,819LM-35,860LM, 143.44lm/W, 277-480V, 0-10V Dimming
MCCT(35/40/50)HV-V2_00.jpg?resizeid=5&resizeh=1200&resizew=1200)
MCCT(35/40/50)HV-V2_01.jpg?resizeid=5&resizeh=1200&resizew=1200)
MCCT(35/40/50)HV-V2_02.jpg?resizeid=5&resizeh=1200&resizew=1200)
MCCT(35/40/50)HV-V2_03.jpg?resizeid=5&resizeh=1200&resizew=1200)
| Suitable for warehouses, manufacturing facilities, convention centers, sporting arenas, big-box retail stores, cold storage facilities and gymnasiums. |

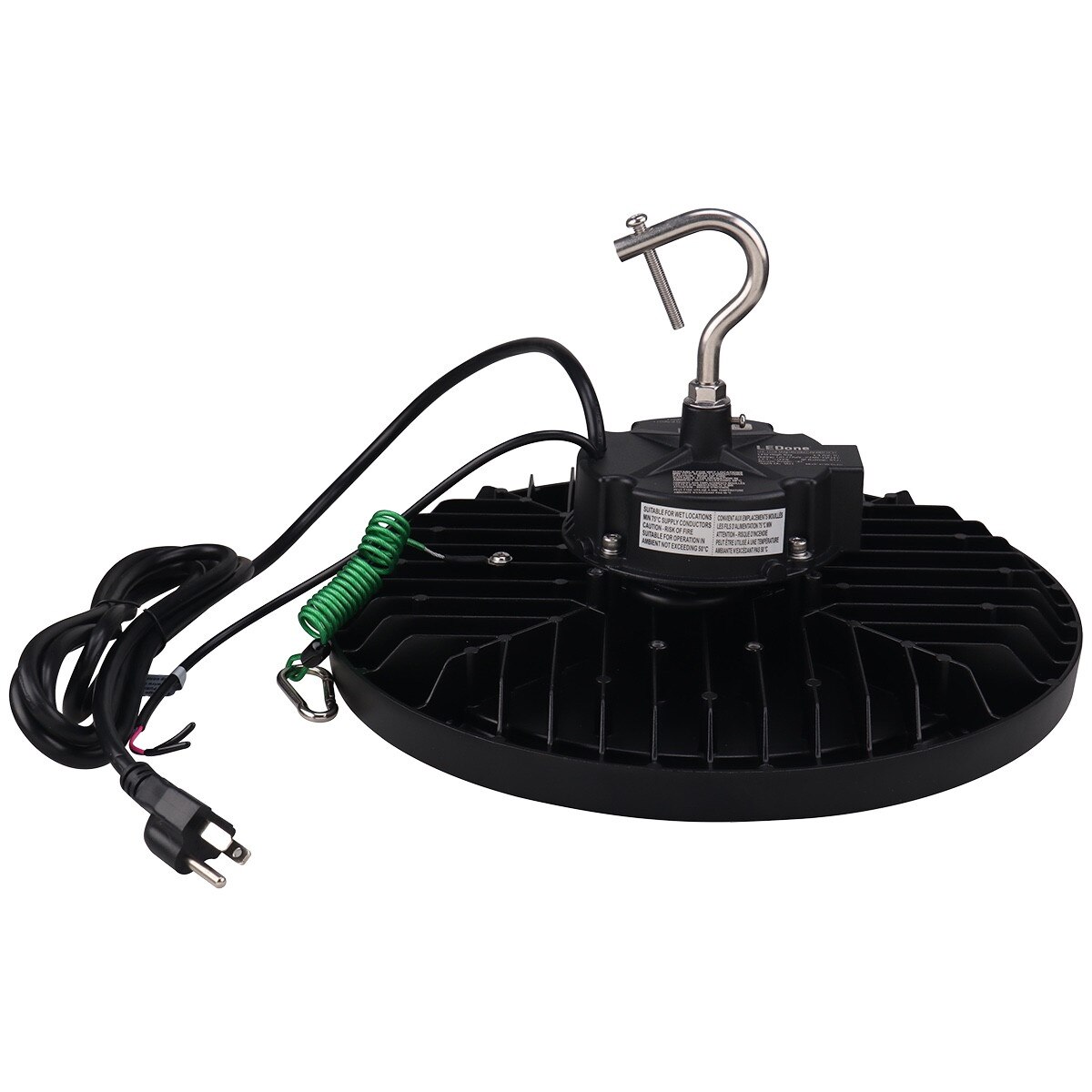

| • Philips Lumiled 3030 LED chips • SPD 6KV • 7.5-foot cord • Corrosive resistant polyester powder coat finish • Aluminum Alloy • Corrosion and rust proof • Easy installation and maintenance |
- Multi Wattage: 180W, 200W and 250W
- Default Wattage: 250W
- Multi CCT: 3,500K, 4,000K and 5,000K
- Default CCT: 5,000K
- 180W: 25,819.2LM 143.44lm/W
- 200W: 28,688LM 143.44lm/W
- 250W: 35,860LM 143.44lm/W
- Power Factor: 0.9
- CRI: 82
- THD: 15%
- 277-480Vac, 50/60Hz
- 0-10V dimming
- IP65 rated
- 90° beam angle
- 50,000 hours lifetime | 5 year limited warranty
Spec Sheet
Installation Guide
Optional Mounting and Accessories:
LOC-ELHB-V2-PCD
LOC-ELHB-V2-250WPCR
LOC-ELHB-V2-ADPT
LOC-ELHB-V2-UBRK LOC-ACY-S-MWS-01-G1 Microwave Sensor Spec Sheet
LOC-ACY-S-MWS-BT-01-G1 Bluetooth Microwave Sensor Spec Sheet
LOC-ACY-S-PIRS-01-G1 PIR Sensor Spec Sheet
LOC-ACY-S-PIRS-BT-01-G1 Bluetooth PIR Sensor Spec Sheet
LOC-RC-White-G1 Remote Control Spec Sheet
LOC-SK-101-4T Photocell Spec Sheet
