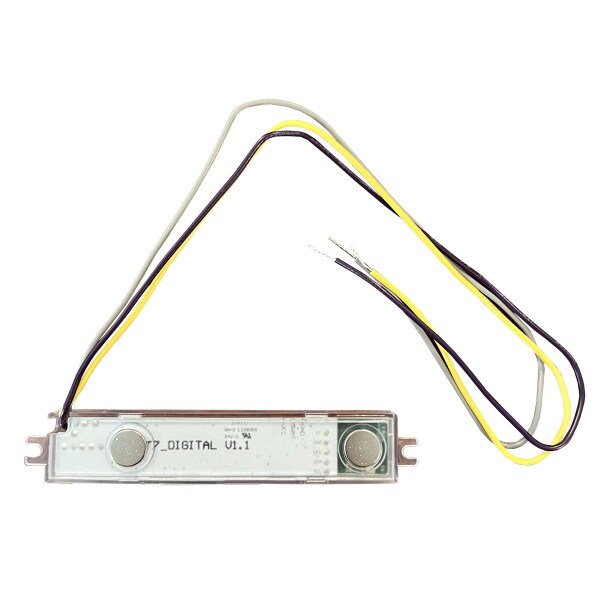

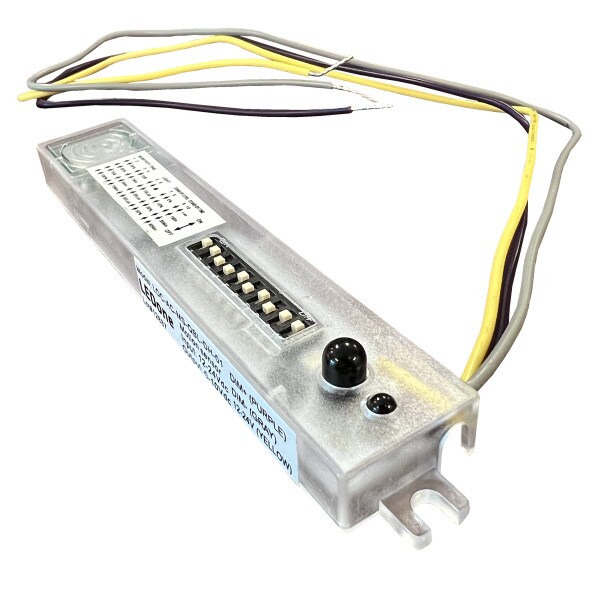

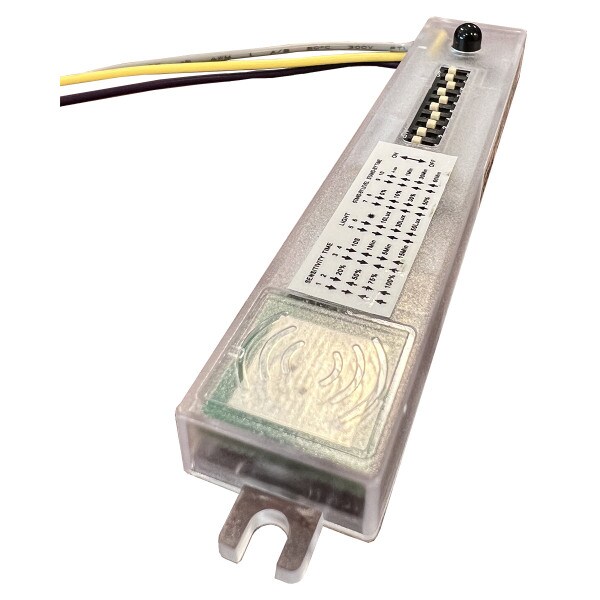

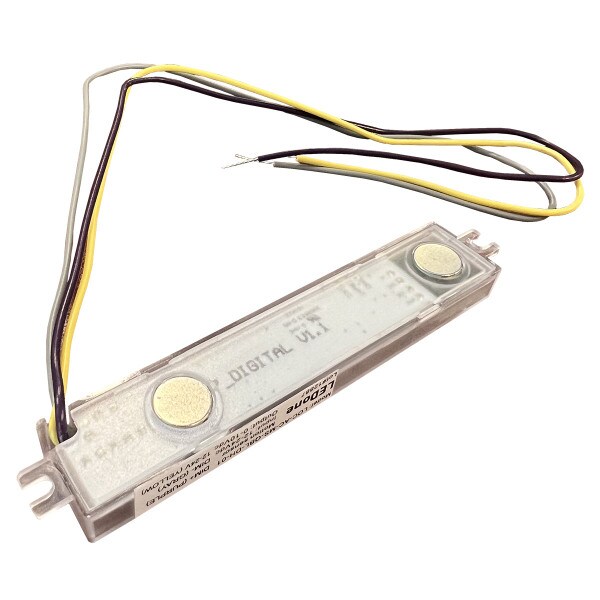

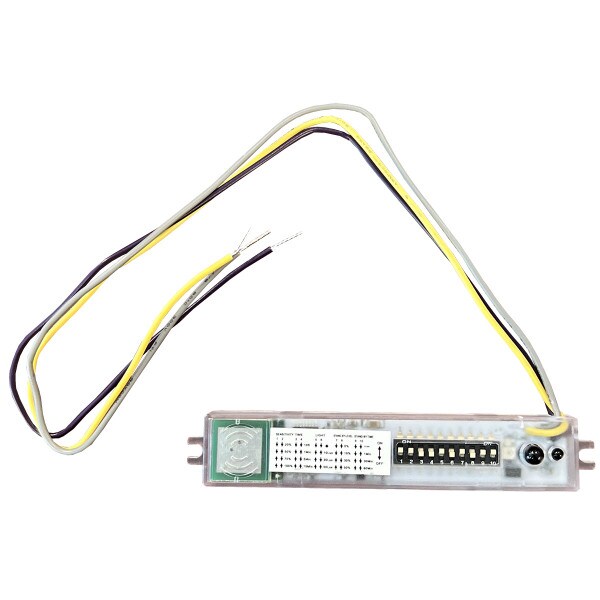

LOC-AC-MS-QBL-DH-01 - Bi-level Daylight Harvesting Microwave Sensor
| • Mounting Height: Max. 13ft (4m) • Remote Range: 50ft (15m) indoor, no backlight • Works with LOC-RC-100 remote control |
- Power Supply: 12V-24V DC, >50mA
- HF System: 5.8GHz +/- 75MHz
- Dim Control Output: 0-10V, maximum 25mA sinking current
- Detection Radius/Angle: Max. 17ft (5.2m) / 360°
- Humidity: Max 95% RH
- Temperature: -40° - 70°C (-40°F - 158°F)
