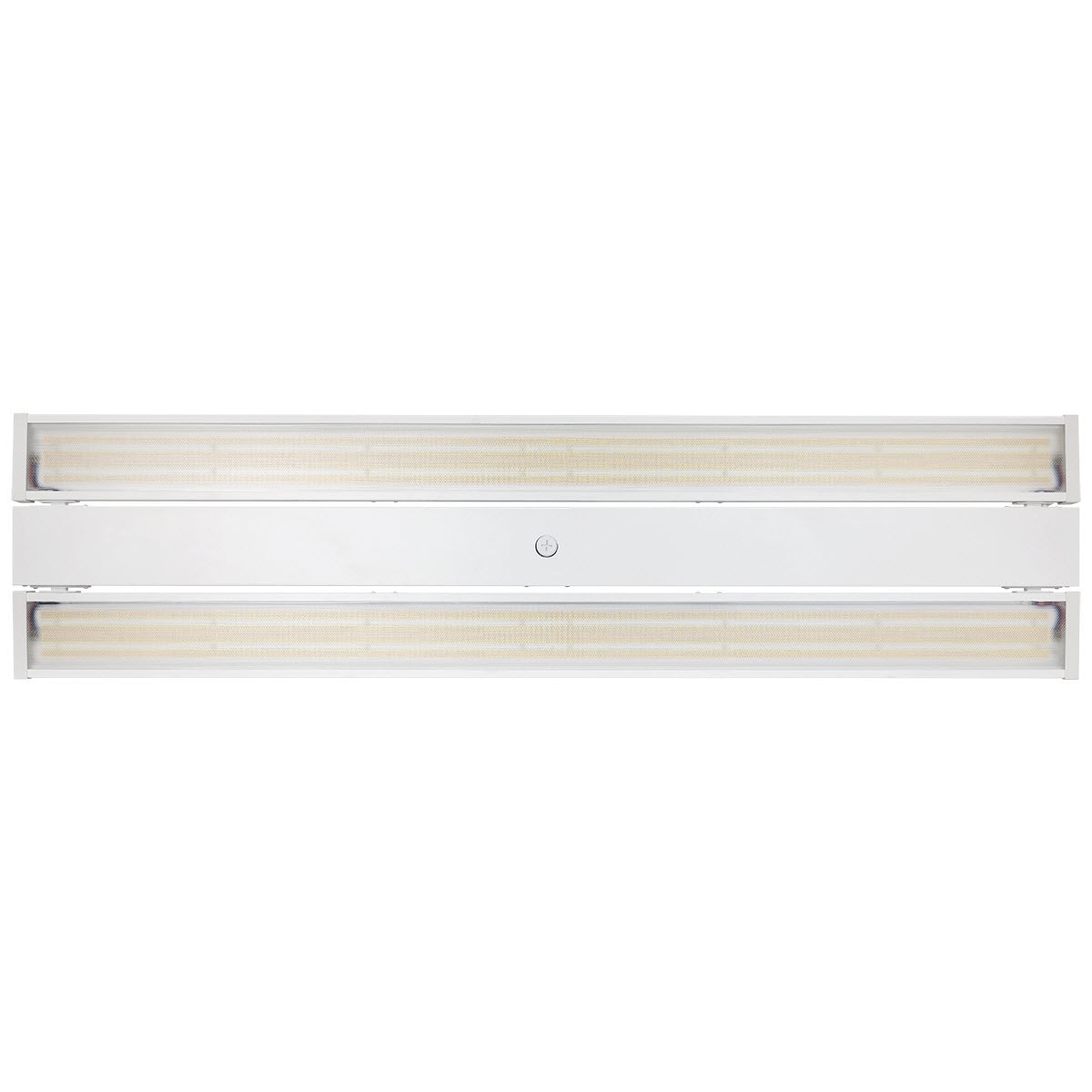

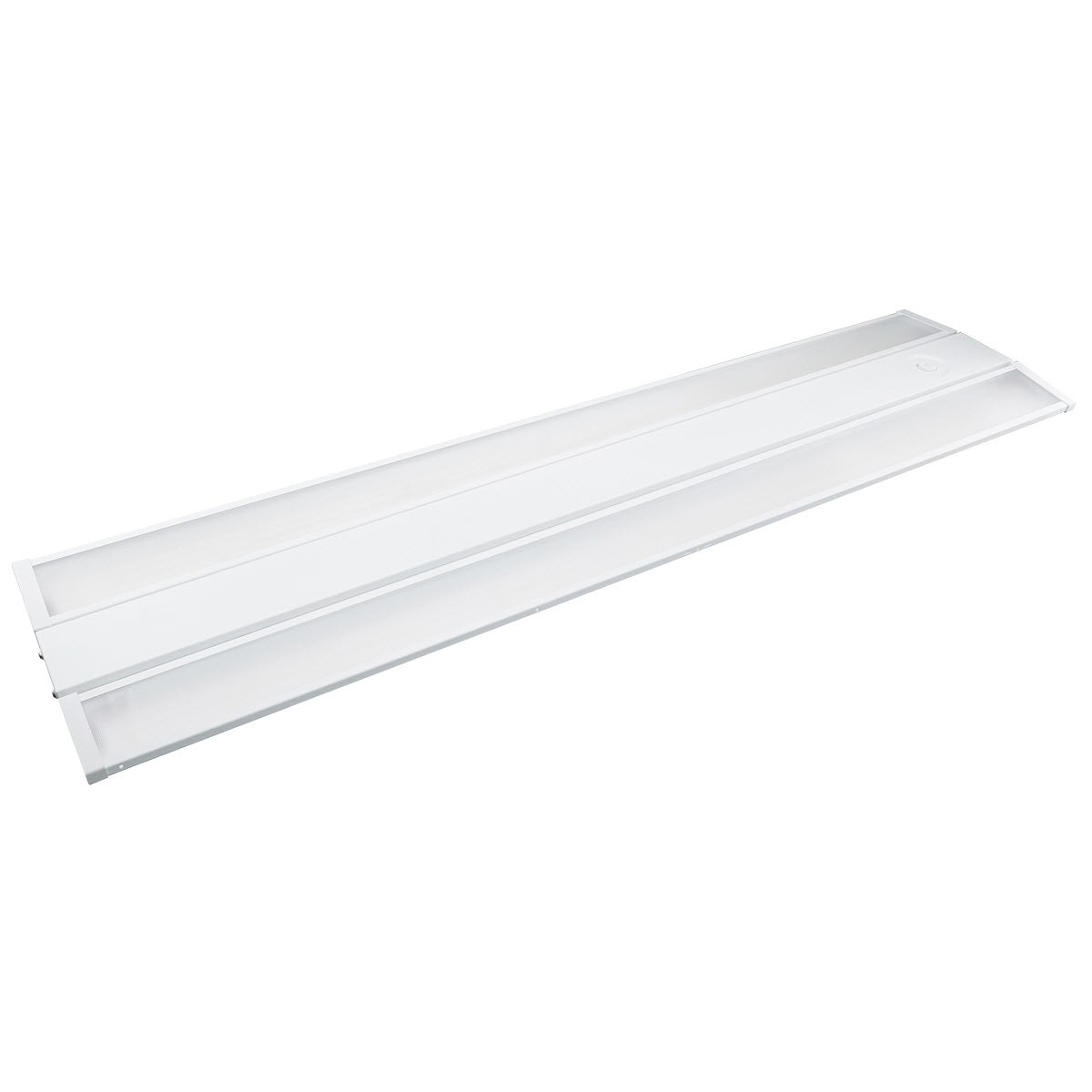

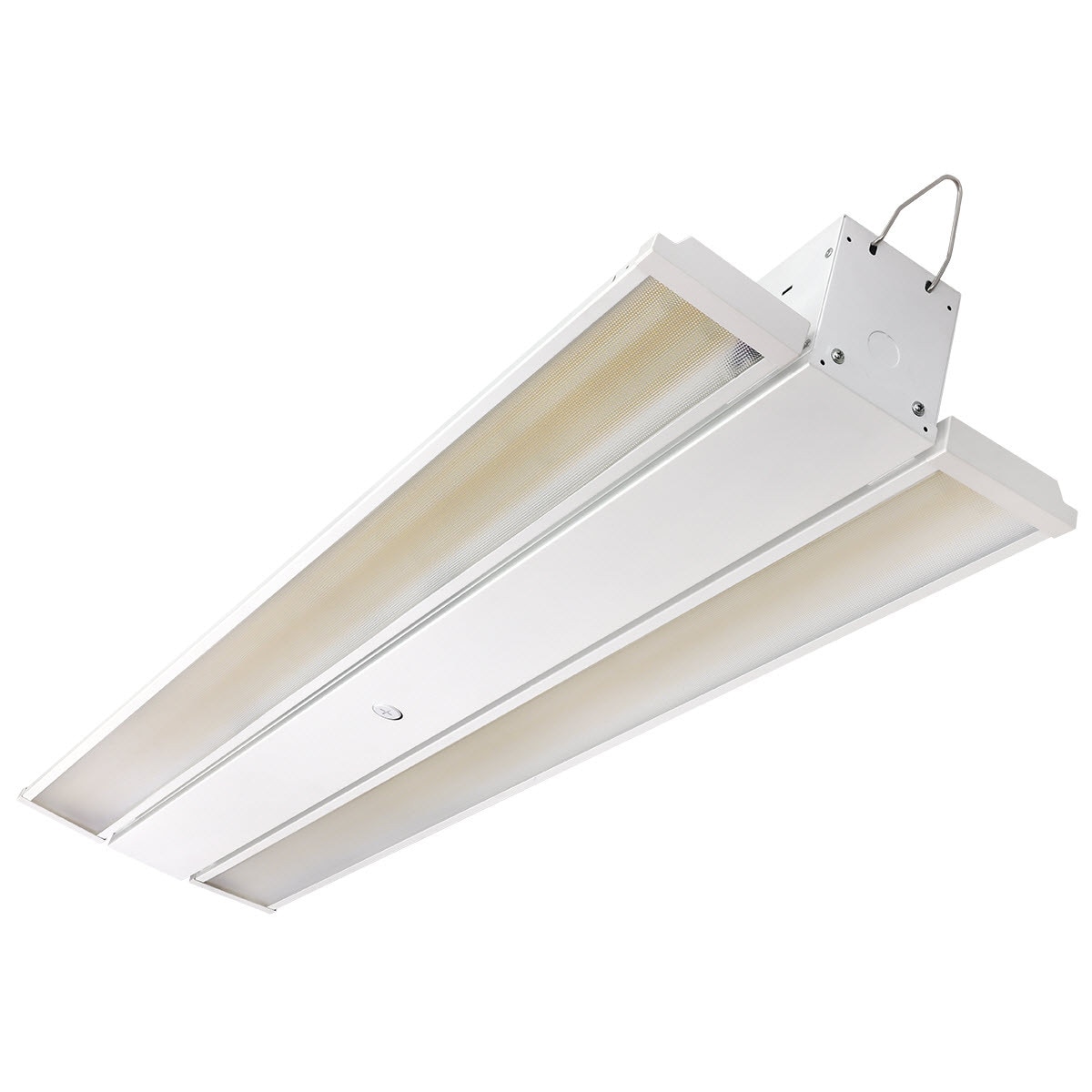

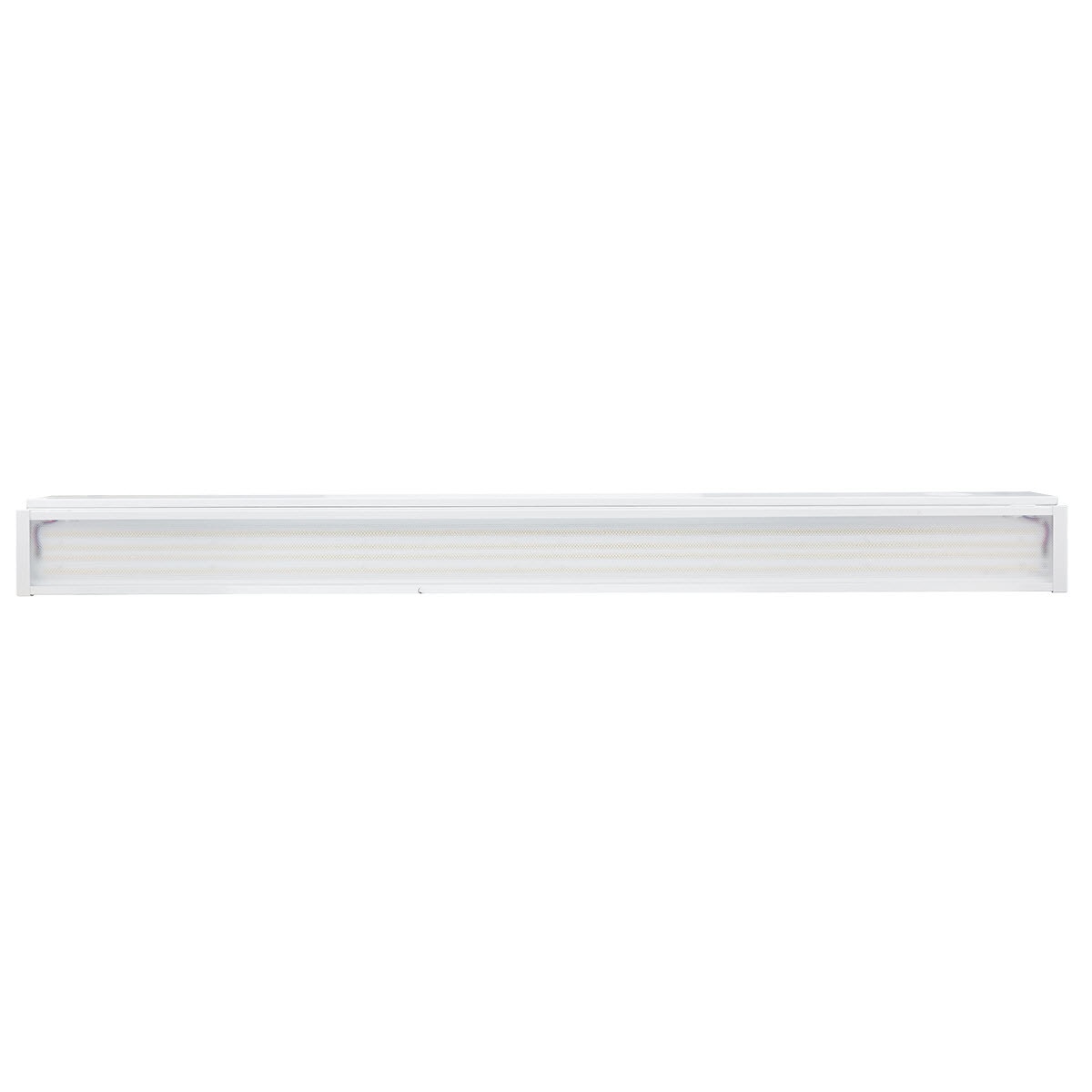

LOC-4FTFLHB-MW(290/320/350)50KD - 4FT LED Foldable Linear High Bay, Multi Wattage 290W/320W/350W, 5000K, 44,080LM-53,200LM, 152LM/W, Frosted, 0-10V Dimming, AC120-277V
50KD_00.jpg?resizeid=3&resizeh=600&resizew=600)
50KD_01.jpg?resizeid=3&resizeh=600&resizew=600)
50KD_02.jpg?resizeid=3&resizeh=600&resizew=600)
50KD_03.jpg?resizeid=3&resizeh=600&resizew=600)
50KD_04.jpg?resizeid=3&resizeh=600&resizew=600)
50KD_05.jpg?resizeid=3&resizeh=600&resizew=600)
50KD_06.jpg?resizeid=3&resizeh=600&resizew=600)
50KD_07.jpg?resizeid=3&resizeh=600&resizew=600)
| Suitable for warehouses, factories, supermarkets, logistic centers and exhibition halls. |

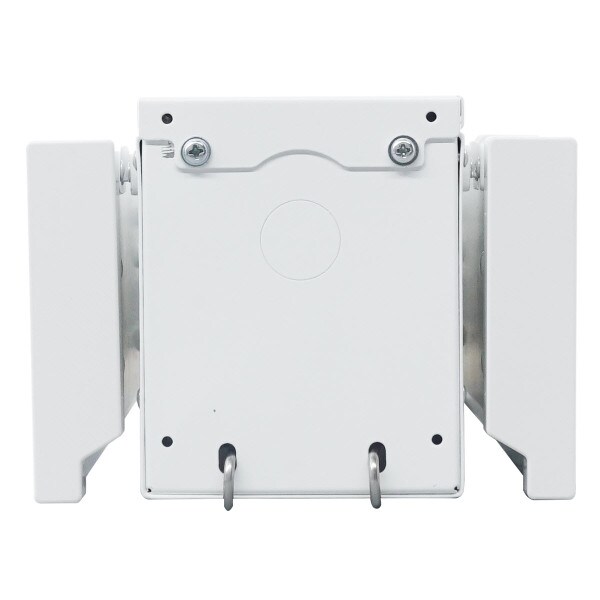

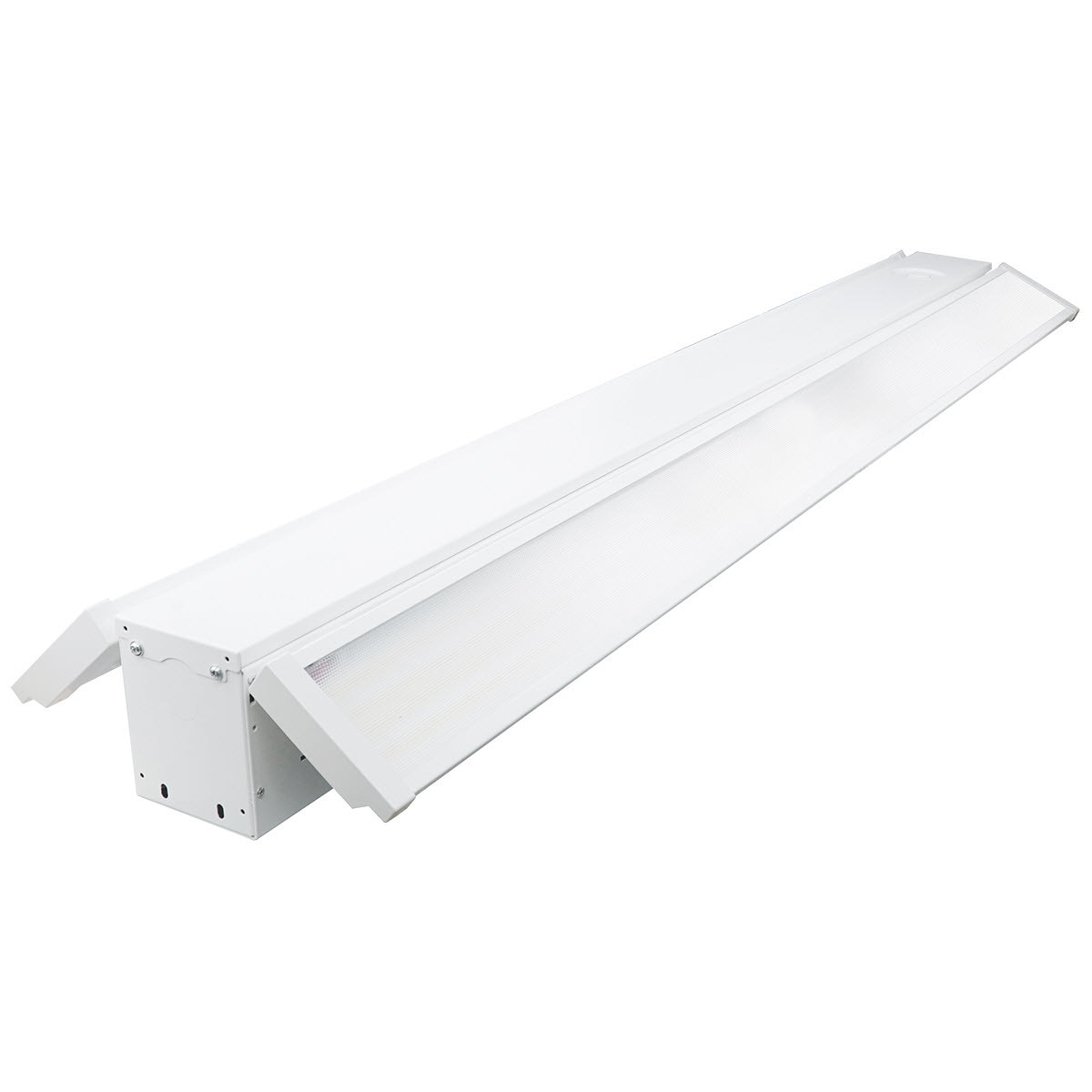

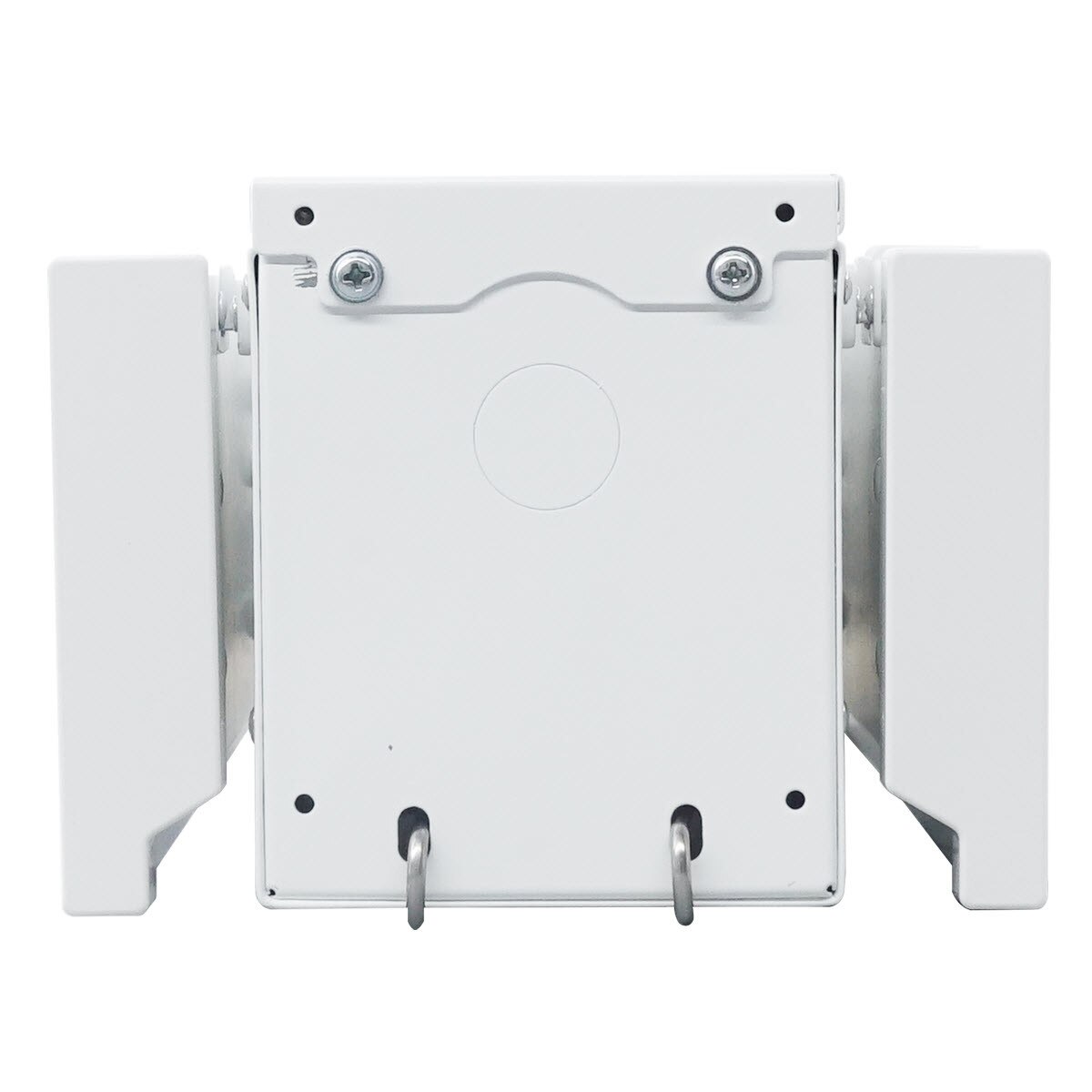

• Die formed galvanized steel, white paint • Frosted PMMA lens • Foldable sides • DC12V auxiliary • Easy installation and maintenance |
- Multi Wattage: 290W / 320W / 350W
- Default Wattage: 350W
- CCT: 5,000K
- 290W 44,080LM
- 320W 48,640LM
- 350W 53,200LM
- 152lm/W
- Power Factor: 0.9
- CRI: 70
- THD: 20%
- 120-277Vac, 50/60Hz
- 0-10V dimming
- IP40 rated
- 120° beam angle
- 50,000 hours lifetime | 5 year limited warranty
Spec Sheet
Installation Guide
LM79 File
IES File

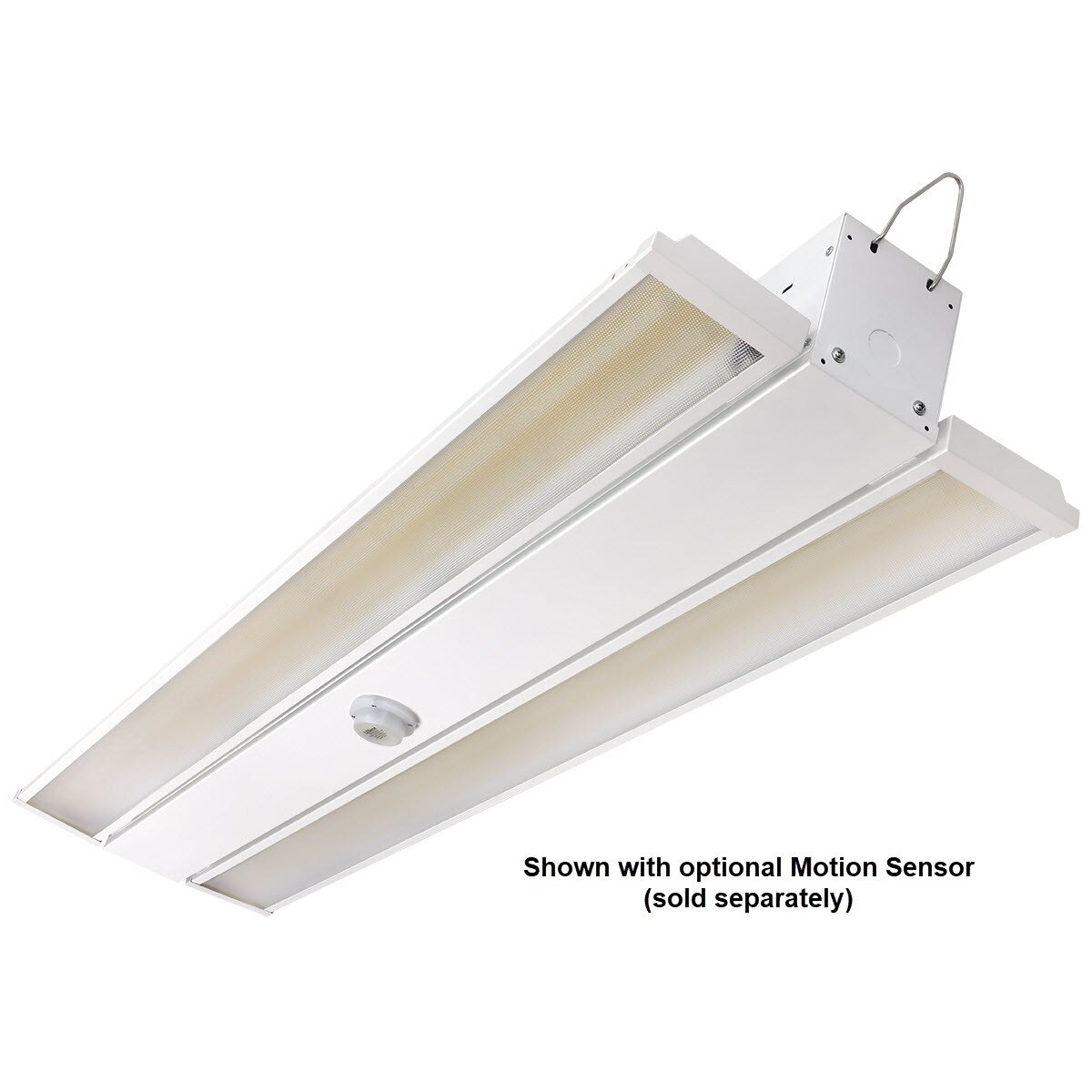

Optional Mounting and Accessories:
LOC-ACY-S-MWS-01-G1 Microwave Sensor Spec Sheet
LOC-ACY-S-MWS-BT-01-G1 Bluetooth Microwave Sensor Spec Sheet
LOC-ACY-S-PIRS-01-G1 PIR Sensor Spec Sheet
LOC-ACY-S-PIRS-BT-01-G1 Bluetooth PIR Sensor Spec Sheet
LOC-RC-White-G1 Remote Control Spec Sheet

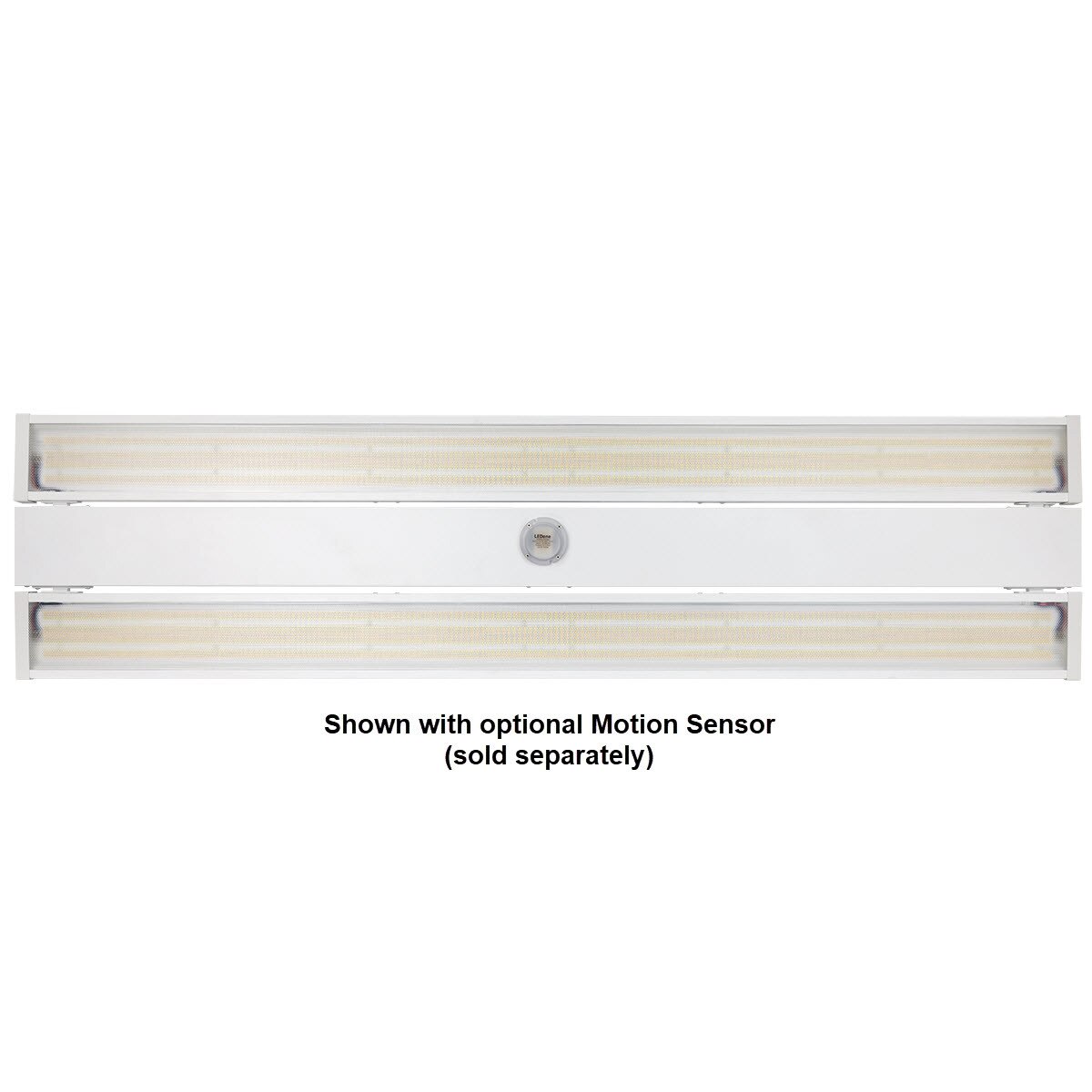

LOC-ANT-5-4T Motion Sensor Spec Sheet
LOC-SK-101-4T Photocell Spec Sheet
LOD-RC-100 Remote Control Spec Sheet
