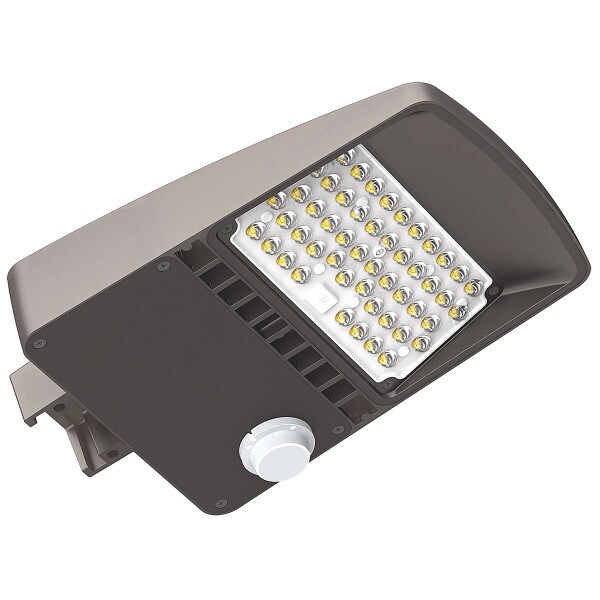

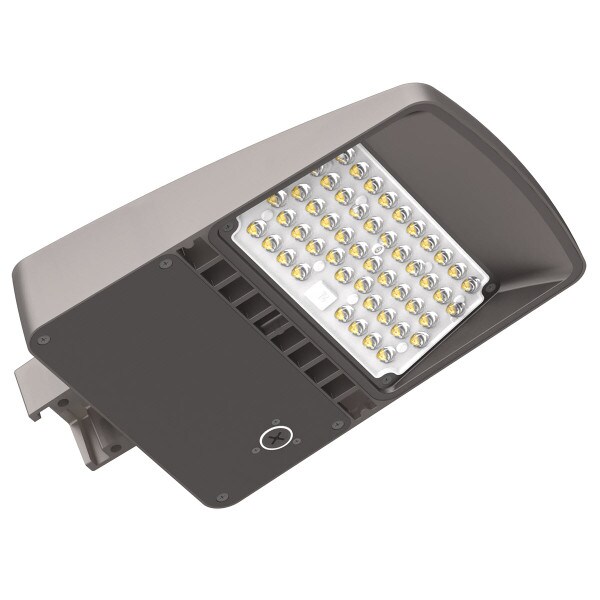

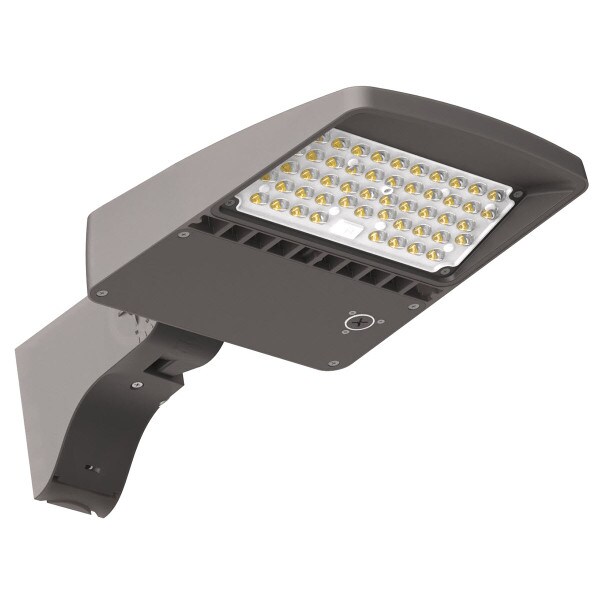

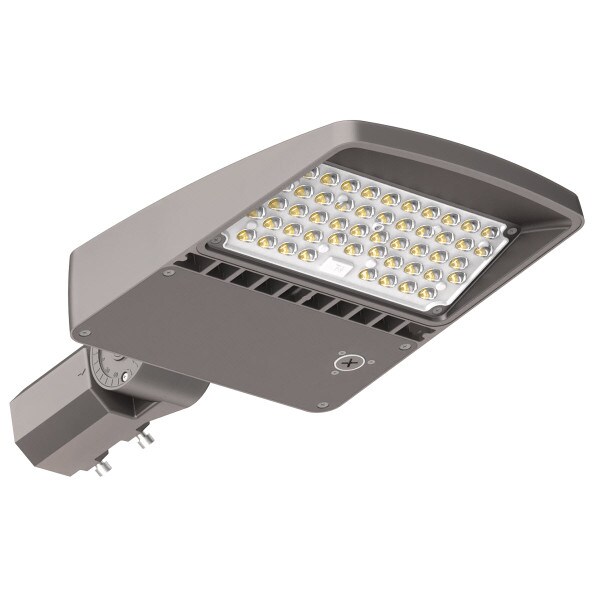

LOC-SPAL-MW(50/80/100/150)50KD-T3LV - SPAL Series Area Light Multi Wattage 50W/80W/100W/150W, 5000K, 150LM/W, Dimmable, AC120-277V, Type 3 Lens, IP65 rated
Warehouses, stadiums, factories, parking lots, supermarkets, logistic centers, and exhibition halls. |
• Samsung 2835 LED Chips • Full cut off • Die-cast aluminum housing treated by anodic oxidation • Easy installation and maintenance • Corrosion and rust proof |
- Multi Wattage 50W, 80W, 100W, 150W
- Default Wattage: 150W
- 50W: 7,500LM 150LM/W
- 80W: 12,000LM 150LM/W
- 100W: 15,000LM 150LM/W
- 150W: 22,500LM 150LM/W
- 5000K
- Power Factor: 0.9
- CRI: 70
- THD: 20%
- 120-277Vac
- BUG Rating: B3-U0-G3
- 0-10V dimming
- IP65 rated
- Type 3 lens
- 120° beam angle
- 50,000 hours lifetime | 5 year limited warranty
Spec Sheet
Installation Guide
LM79 File
Optional Mounting and Accessories:
Arm Mount
Slip Fitter Mount
U-Bracket Mount
Trunnion Mount
Rear Shield
LOC-ACY-S-MWS-01-G1 Microwave Sensor Spec Sheet
LOC-ACY-S-MWS-BT-01-G1 Bluetooth Microwave Sensor Spec Sheet
LOC-ACY-S-PIRS-01-G1 PIR Sensor Spec Sheet
LOC-ACY-S-PIRS-BT-01-G1 Bluetooth PIR Sensor Spec Sheet
LOC-RC-White-G1 Remote Control Spec Sheet
LOC-ANT-5-4T Motion Sensor Spec Sheet
LOC-SK-101-4T Photocell Spec Sheet
LOD-RC-100 Remote Control Spec Sheet
