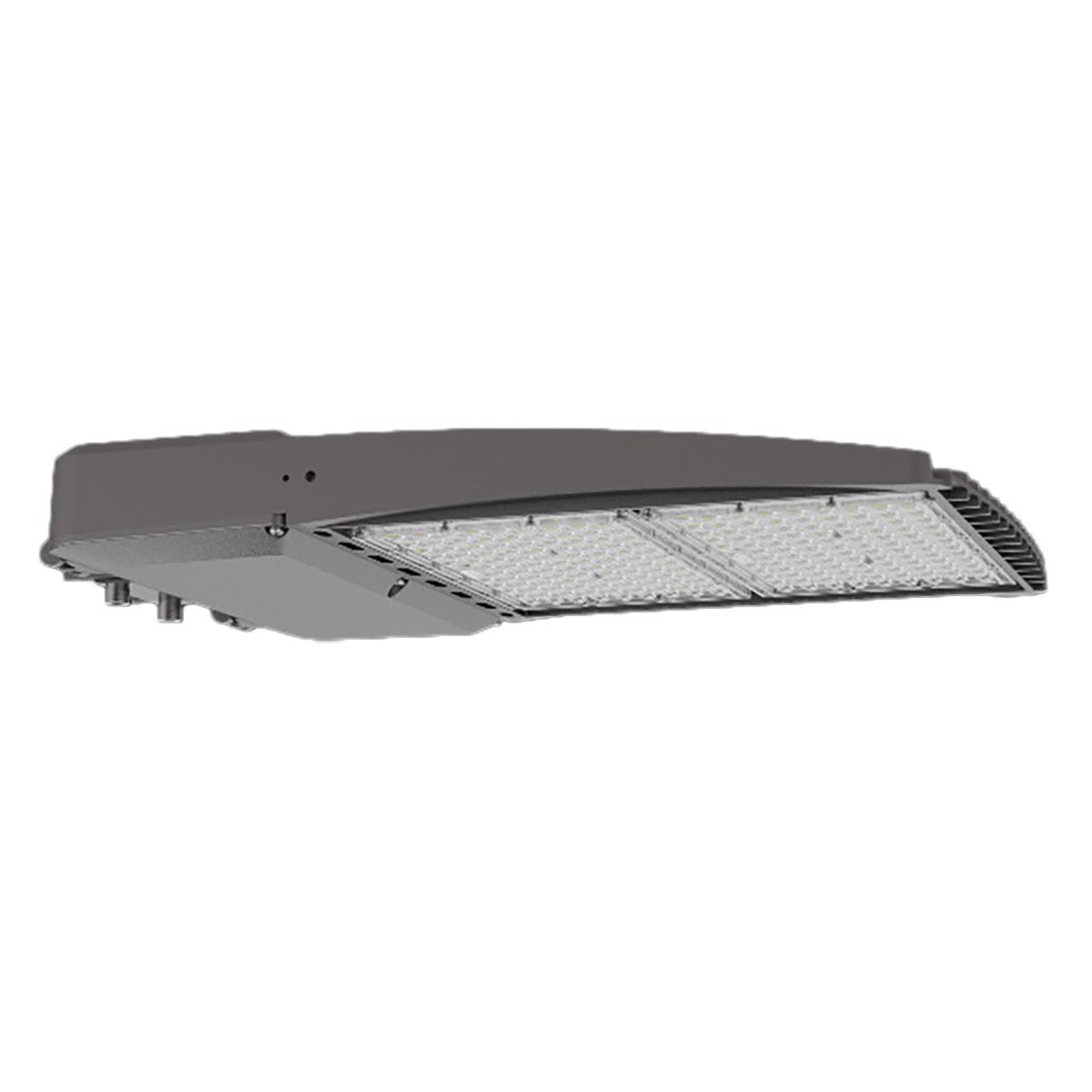

LOC-RGAL-MW(320/350/400/450) MCCT(30/40/50)D-T3HV - RGAL Series Area Light Multi Wattage 320W, 350W, 400W, 450W, Multi CCT 3000K, 4000K, 5000K, 154lm/W, with Type 3 lens, IP65
MCCT(30/40/50)D-T3HV_00.jpg?resizeid=5&resizeh=1200&resizew=1200)
| Warehouses, stadiums, factories, parking lots, supermarkets, logistic centers, and exhibition halls. |
| • Lumileds 3030 LED Chips •Full cut off • Die-cast aluminum housing treated by anodic oxidation • Easy installation and maintenance • Corrosion and rust proof |
- Multi Wattage: 320W, 350W, 400W and 450W
- Default Wattage: 450W
- Multi CCT: 3,000K, 4,000K and 5,000K
- Default CCT: 5,000K
- 320W: 49,280LM 154lm/W
- 350W: 53,900LM 154lm/W
- 400W: 61,600LM 154lm/W
- 450W: 69,300LM 154lm/W
- Power Factor: 0.9
- CRI: 70
- THD: 2%
- 277V-480Vac
- BUG Rating: B-U-G
- 0-10V dimming
- IP65 rated
- Type 3 lens
- 120° beam angle
- 50,000 hours lifetime | 5 year limited warranty
Spec Sheet
Installation Guide
Optional Mounting and Accessories:
Arm Mount
Slip Fitter Mount
U-Bracket Mount
Trunnion Mount
Rear Shield
LOC-ACY-S-MWS-01-G1 Microwave Sensor Spec Sheet
LOC-ACY-S-MWS-BT-01-G1 Bluetooth Microwave Sensor Spec Sheet
LOC-ACY-S-PIRS-01-G1 PIR Sensor Spec Sheet
LOC-ACY-S-PIRS-BT-01-G1 Bluetooth PIR Sensor Spec Sheet
LOC-RC-White-G1 Remote Control Spec Sheet
